DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

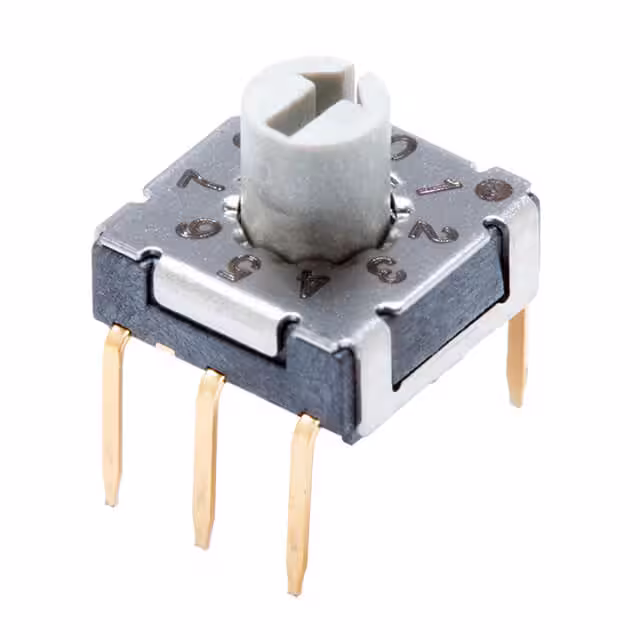

RDS-10S-7229-R-DSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
3,281 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

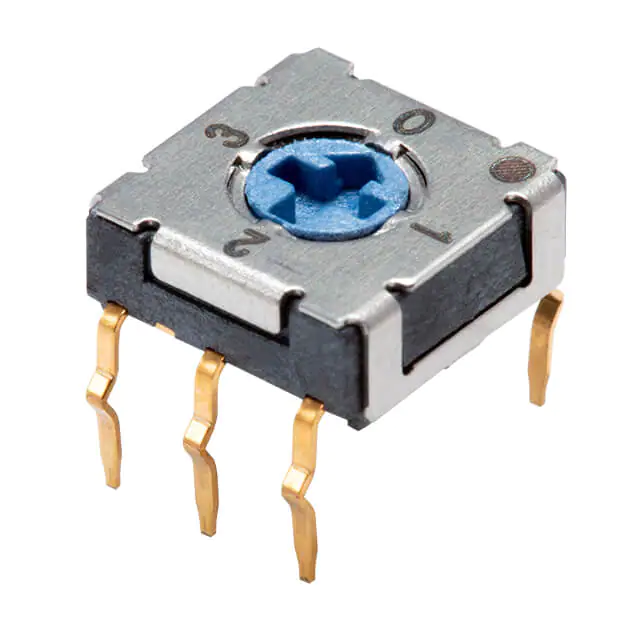

RDS-4S-7229-C-CRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
4,564 |
|
Datasheet |
RDS-7229-CR | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

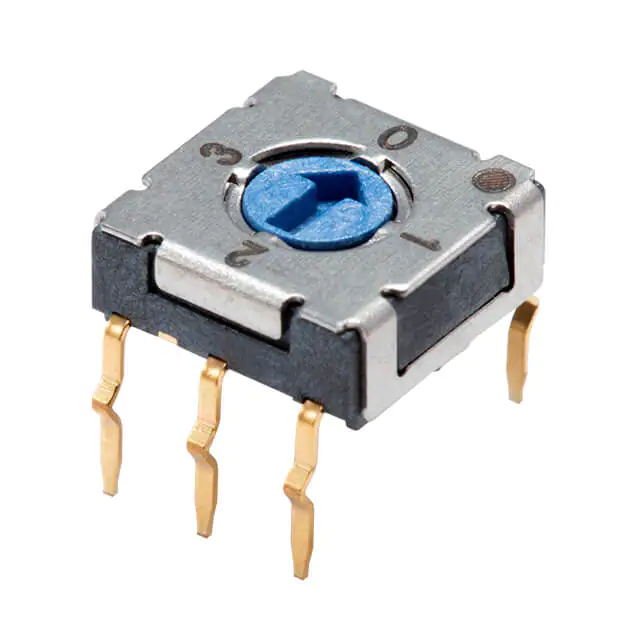

RDS-4S-7229-A-CRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
3,902 |
|
Datasheet |
RDS-7229-CR | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
DS04-254-1-03BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
1,676 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.179" (4.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2S-01BKSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
3,397 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS04-254-1S-01BKSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
4,339 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2S-02BKSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
2,507 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS04-254-1S-02BKSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
2,516 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

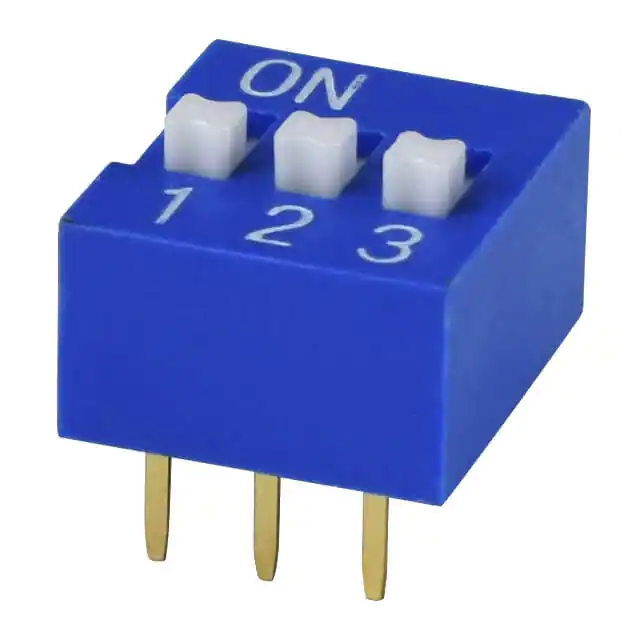

DS01-254-L-03BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
1,606 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS01-254-S-03BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
3,758 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
