DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS04-254-2-03BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
3,185 |
|
Datasheet |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01-254-S-04BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
2,597 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS02-254-2L-03BESWITCH PIANO DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
3,540 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS02-254-1L-03BESWITCH PIANO DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
4,908 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

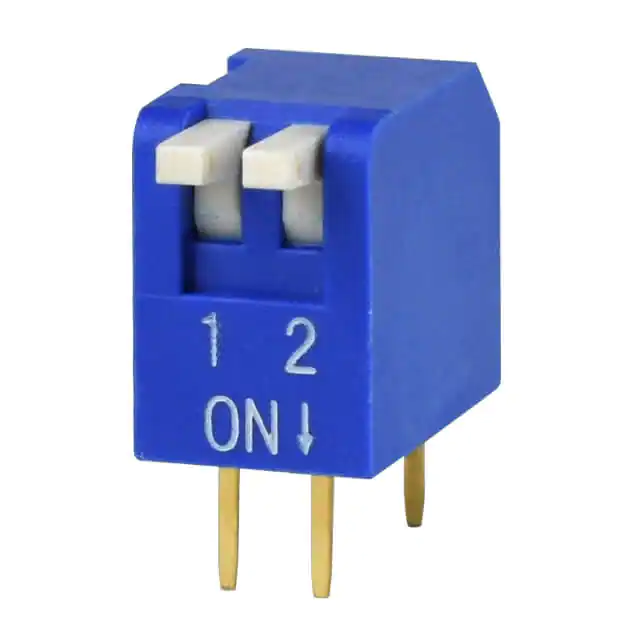

DS02-254-2L-02BESWITCH PIANO DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
3,581 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01-254-S-05BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
1,092 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS01-254-L-05BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
4,871 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-2S-05BKSWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
4,021 |
|
Datasheet |
DS04-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01-254-L-06BESWITCH SLIDE DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
1,425 |
|
Datasheet |
DS01-254 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS02C-254-2L-03BESWITCH PIANO DIP SPST 0.025A 24V Same Sky (Formerly CUI Devices) |
3,300 |
|
Datasheet |
DS02-254 | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
