DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS4-4S-1012-73-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
4,085 |
|
Datasheet |
RDS4-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS4-4S-1012-73-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,326 |
|
Datasheet |
RDS4-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-4S-1011-73-RA-254-D-67SWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,373 |
|
Datasheet |
RDS7-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-4S-1011-73-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,890 |
|
Datasheet |
RDS7-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1065-1-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
1,269 |
|
Datasheet |
RDS3-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.437" (11.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1065-1-SMT-TRSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
3,895 |
|
Datasheet |
RDS6-1065-SMT | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.437" (11.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RDS-10S-7229-C-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
4,721 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

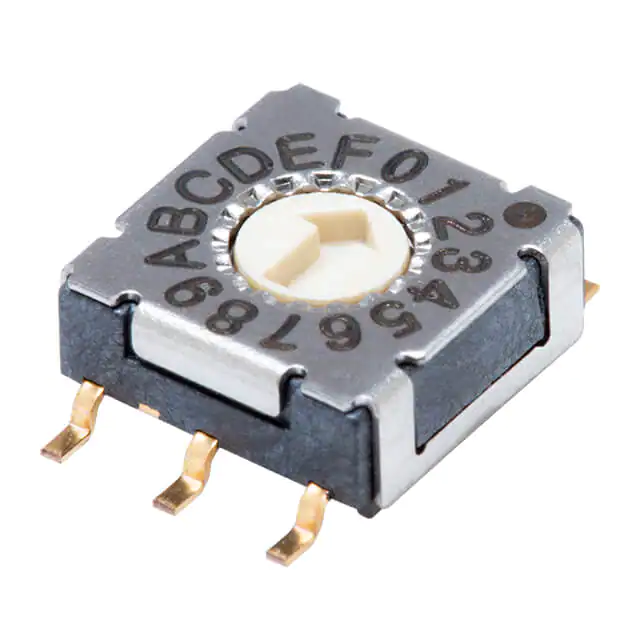

RDS-16S-7229-A-SMT-TRSWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices) |
3,640 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

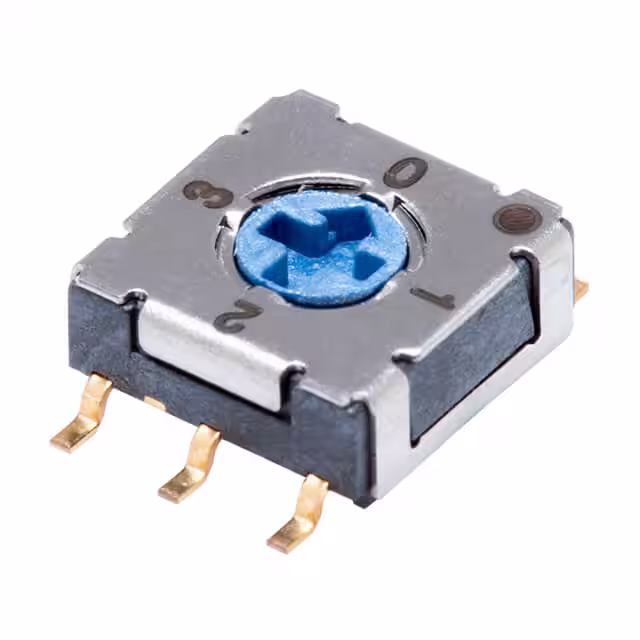

RDS-4S-7229-C-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
3,039 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

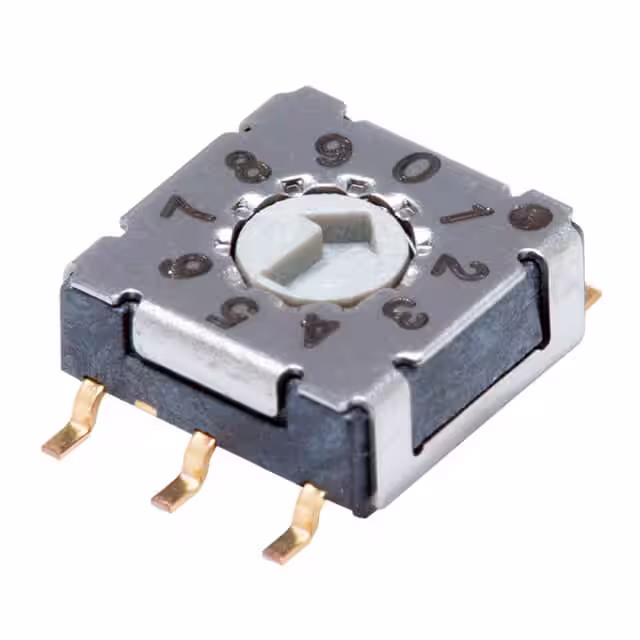

RDS-10S-7229-A-SMT-TRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
3,275 |
|
Datasheet |
RDS-7229-SMT | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
