Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y201132C2WCNQSWITCH KEYLOCK 2POS DPDT 4A 125V C&K |
2,412 |
|
Datasheet |
Y | Bulk | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
PM061UEBM05KB22SWITCH KEYLK 2POS SPST 0.4VA 20V C&K |
2,105 |
|
Datasheet |
PM | Bulk | Active | SPST | 2 | Off-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 90° | Copper | Gold | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Circular - 11.81mm Dia | - | - |
|
|
Y2011U2C203NGSWITCH KEYLOCK 2POS DPDT 4A 125V C&K |
1,727 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y190732R807NQSWITCH KEYLOCK 3POS SP3T 4A 125V C&K |
3,025 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | - |
|
|
Y108122A803NQSWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
4,603 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
A216132A1NCRQSWITCH KEYLK 4POS DP4T 2.5A 125V C&K |
4,941 |
|
Datasheet |
A | Bulk | Active | DP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 30° | Silver (Ag) | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

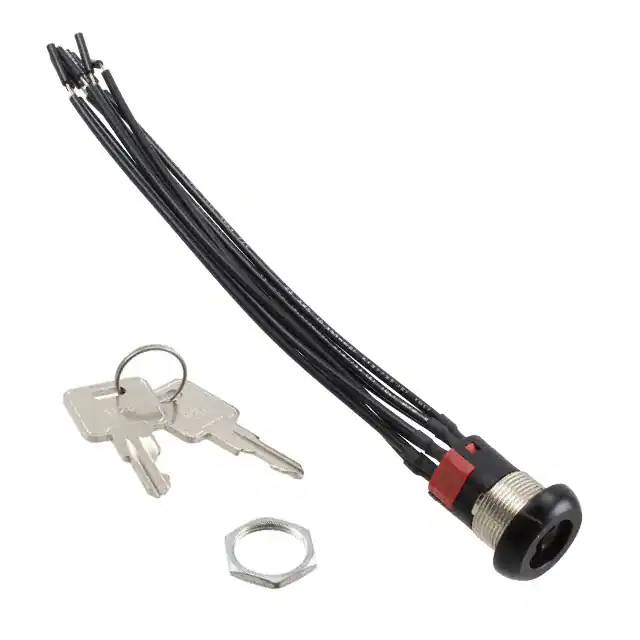

Y2001U2C8WCRQSWITCH KEYLOCK 3POS DP3T 4A 125V C&K |
1,648 |
|
Datasheet |
Y | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
|
A315132A1SZRBSWITCH KEYLK 3POS 3P3T 0.4VA 20V C&K |
3,573 |
|
Datasheet |
A | Tray | Active | 3P3T | 3 | On-On-On | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
A3141U2Y2NZNQSWITCH KEYLK 2POS 3PDT 2.5A 125V C&K |
3,317 |
|
Datasheet |
A | Bulk | Active | 3PDT | 2 | On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
Y201132B803NBSWITCH KEYLK 2POS DPDT 0.4VA 20V C&K |
4,866 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
