Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

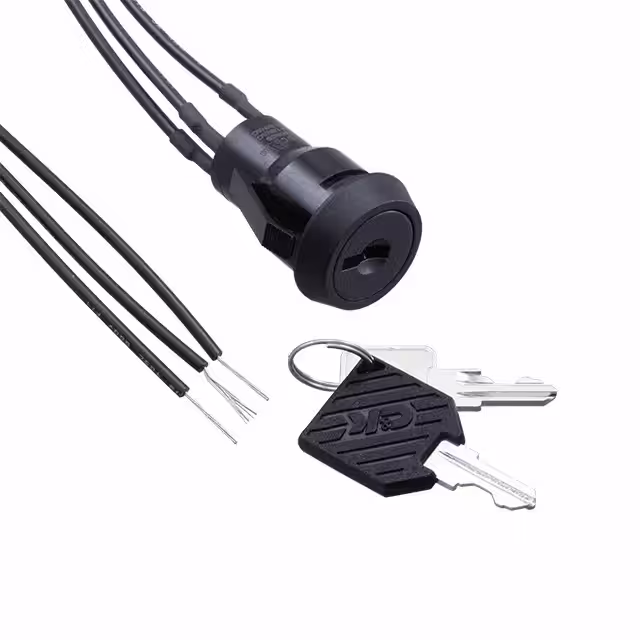

P10113TCMWCQ22SWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
4,551 |
|
Datasheet |
P | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount, Snap-In | Wire Leads | Circular - 20.30mm Dia | - | - |
|
Y1900S2C207DQSWITCH KEYLOCK 4POS SP4T 4A 125V C&K |
2,482 |
|
Datasheet |
Y | Tray | Active | SP4T | 4 | On-On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y1417U2C203NQSWITCH KEYLOCK 3POS SP3T 4A 125V C&K |
3,531 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
A114132Y2NZNQSWITCH KEYLK 2POS SPDT 2.5A 125V C&K |
1,208 |
|
Datasheet |
A | Tray | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | -30°C ~ 85°C |
|
|
A3151U2A1SZRQSWITCH KEYLK 3POS 3P3T 2.5A 125V C&K |
2,446 |
|
Datasheet |
A | Bulk | Active | 3P3T | 3 | On-On-On | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 and 3 | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
Y1011U2B203NQSWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
4,394 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
PM0613EBM05KQ22SWITCH KEYLOCK 2POS SPST 4A 125V C&K |
4,659 |
|
Datasheet |
PM | Tray | Obsolete | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Circular - 11.81mm Dia | - | - |
|

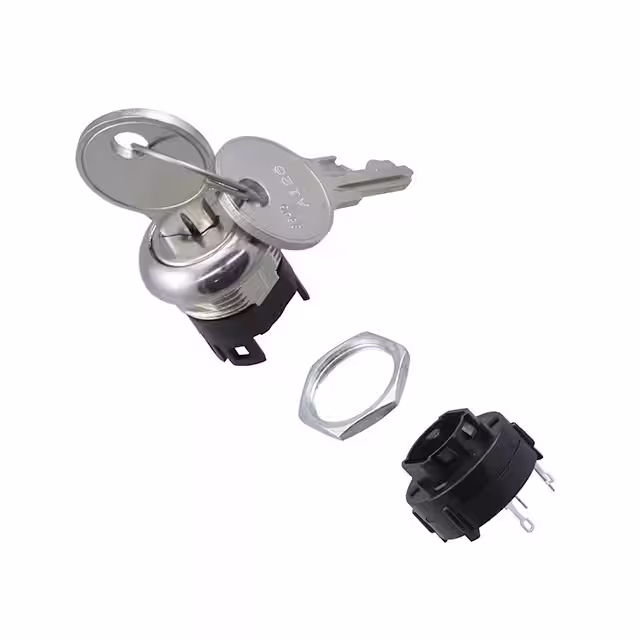

A115132Y2NZNQSWITCH KEYLK 3POS SP3T 2.5A 125V C&K |
2,088 |
|
Datasheet |
A | Tray | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | -30°C ~ 85°C |
|
|
Y100822C2WCNQSWITCH KEYLOCK 3POS SP3T 4A 125V C&K |
3,572 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
|
Y1011U2CFWCNQESWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
2,595 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
