Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1161U2A1NZRQSWITCH KEYLK 4POS SP4T 2.5A 125V C&K |
2,805 |
|
Datasheet |
A | Tray | Active | SP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 and 4 | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
Y2001U2C203NQSWITCH KEYLOCK 3POS DP3T 4A 125V C&K |
4,957 |
|
Datasheet |
Y | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
YF21132C803NQSWITCH KEYLOCK 2POS DPDT 4A 125V C&K |
2,361 |
|
Datasheet |
YF | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 11.99mm Dia | Epoxy Sealed Terminals | - |
|
|
Y200AA2CF03NQSWITCH KEYLOCK C&K |
3,935 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Y1417U2C2WCNQSWITCH KEYLOCK 3POS SP3T 4A 125V C&K |
4,640 |
|
Datasheet |
Y | Bulk | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
|
Y100AA2C803NQSWITCH KEYLOCK 3POS SP3T 4A 125V C&K |
3,865 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y1001U2V203NQSWITCH KEYLOCK 3POS SP3T 4A 125V C&K |
1,815 |
|
Datasheet |
Y | Bulk | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Tubular Key | 1 and 3 | 45° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
A216132Y2NCNQSWITCH KEYLK 4POS DP4T 2.5A 125V C&K |
4,068 |
|
Datasheet |
A | Bulk | Active | DP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 30° | Silver (Ag) | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
Y1011U2C403LQSWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
2,688 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Latch Pawl | - |
|

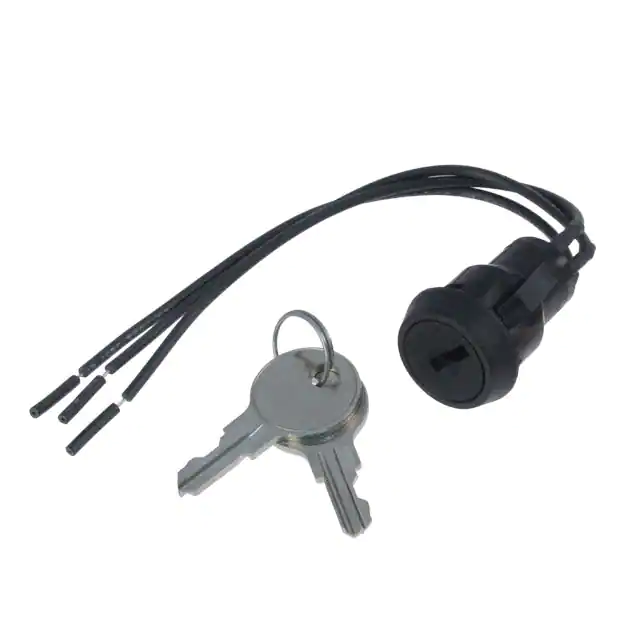

P101132CMWCG2SWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
1,746 |
|
Datasheet |
P | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount, Snap-In | Wire Leads | Circular - 20.30mm Dia | - | - |
