Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P101132CM03Q2SWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
1,196 |
|
Datasheet |
P | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount, Snap-In | Solder Lug | Circular - 20.30mm Dia | - | - |
|
P1011U2CM03Q2SWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
2,337 |
|
Datasheet |
P | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 90° | Copper | Silver | Panel Mount, Snap-In | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y100AA2C2WCNQESWITCH KEYLOCK 3POS SP3T 4A 125V C&K |
3,100 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
P1011UTCM03Q22SWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
3,139 |
|
Datasheet |
P | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 90° | Copper | Silver | Panel Mount, Snap-In | Solder Lug | Circular - 20.30mm Dia | - | - |
|
Y101132C203NQESWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
2,938 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
|
Y101132B203NQSWITCH KEYLOCK 3POS SPDT 4A 125V C&K |
4,906 |
|
Datasheet |
Y | Bulk | Active | SPDT | 3 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
Y1011U2BF03NQSWITCH KEYLOCK C&K |
2,816 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

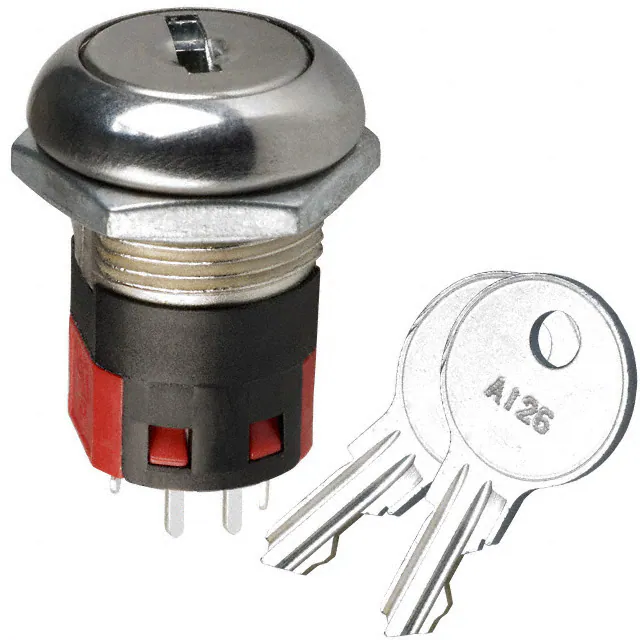

Y2011U2C202NQSWITCH KEY 2POS DPDT 4A 125V 4PC C&K |
2,313 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | - | - |
|
|
Y101132C102RQSWITCH KEYLOCK 2POS SPDT 4A 125V C&K |
4,541 |
|
Datasheet |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | PC Pin | Circular - 19.30mm Dia | - | - |
|
|
Y100AA2C203NGSWITCH KEYLOCK C&K |
2,767 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
