Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABS1114519SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
4,615 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|

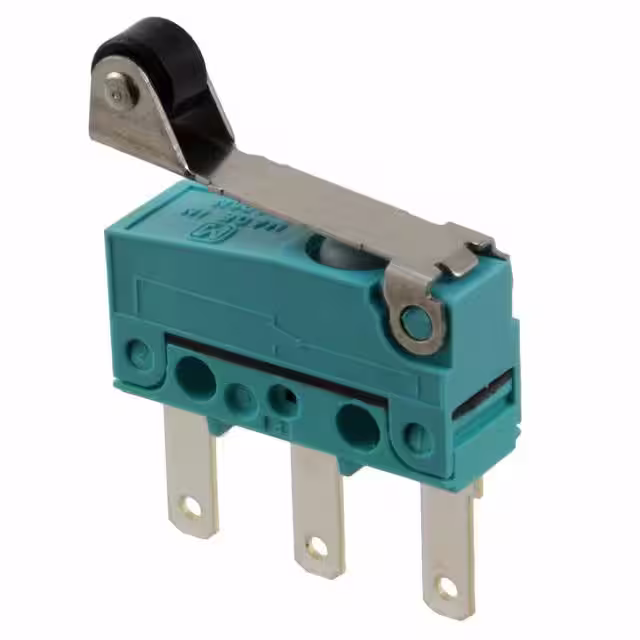

ABS1116549SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works |
4,735 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|

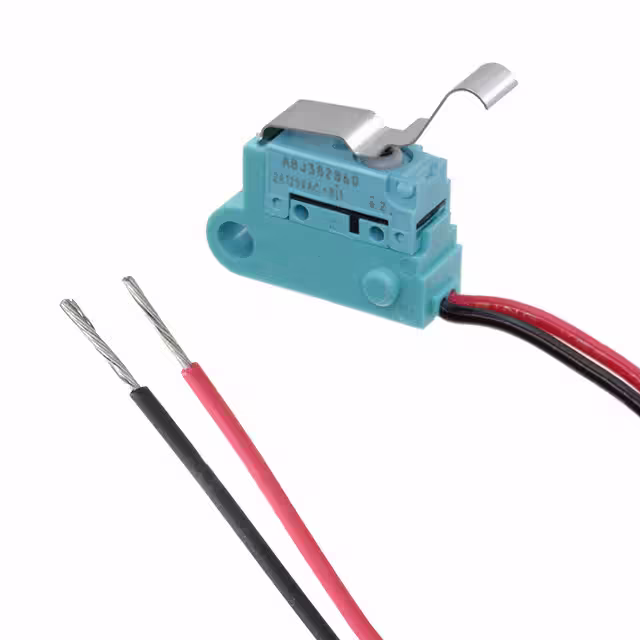

ABJ382860SWITCH SNAP ACT SPST-NC 2A 125V Panasonic Electric Works |
3,362 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NC | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 179gf | 27gf | 0.640" (16.3mm) | 0.102" (2.6mm) | 0.020" (0.5mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
ABJ382861SWITCH SNP ACT SPST-NC 0.1A 125V Panasonic Electric Works |
3,611 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 179gf | 27gf | 0.640" (16.3mm) | 0.102" (2.6mm) | 0.020" (0.5mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
ABV1210503SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works |
3,672 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
ABV1210613SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works |
4,615 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 300gf | 60gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
ABS1516413SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
4,715 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 40gf | 3.500gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
|
ASQ10627SWITCH SNAP ACT SPST-NC 0.1A 30V Panasonic Electric Works |
4,709 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|
|
ASQ10617SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works |
2,306 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|
|
ABS161154SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works |
2,777 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
