Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABS1112503SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
4,313 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|

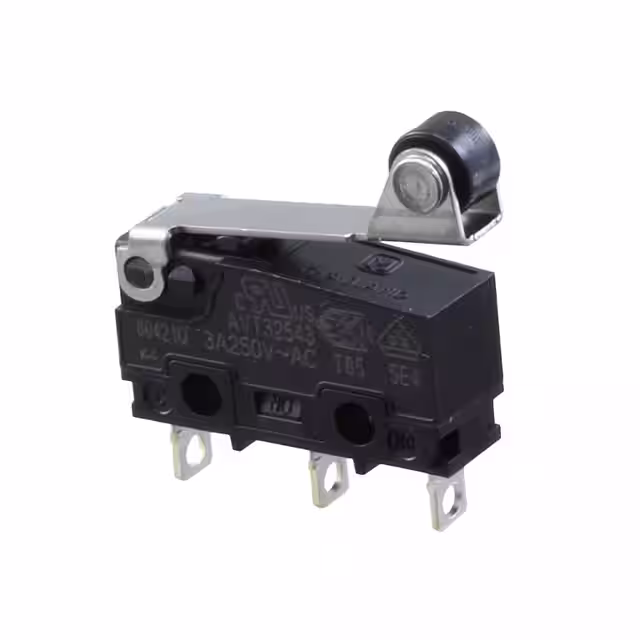

AVT32543-ASWITCH SNAP ACTION SPDT 3A 125V Panasonic Electric Works |
3,447 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 40gf | 3.500gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
ASQM17420-ASWITCH SNP ACT SPST-NC 0.05A 16V Panasonic Electric Works |
3,605 |
|
Datasheet |
ASQM1 | Bulk | Active | SPST-NC | On-Mom | 50mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.280" (7.1mm) | - | - | 0.065" (1.7mm) | -40°C ~ 85°C |
|
ASQMR17438ASWITCH SNAP ACT FAIL DETECT 16V Panasonic Electric Works |
4,000 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
ABS1114503SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works |
3,203 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|

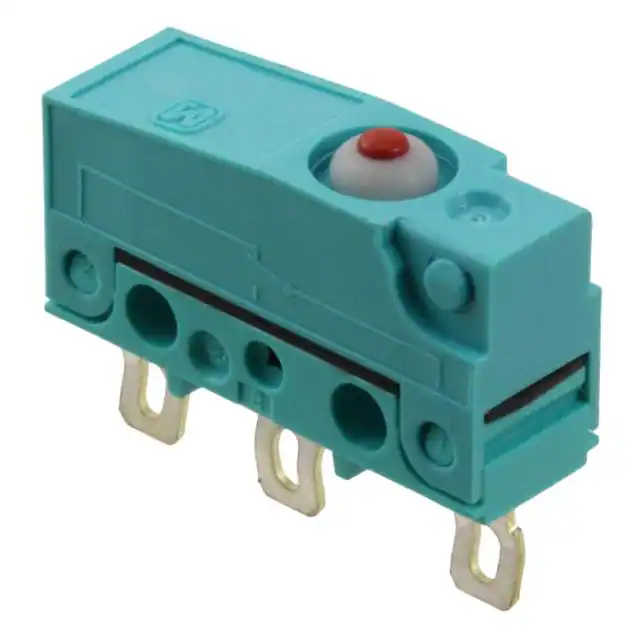

ABS1410419SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
1,353 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
ABS1512513SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
2,057 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ASQMR17430ASWITCH SNAP ACT FAIL DETECT 16V Panasonic Electric Works |
1,319 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.280" (7.1mm) | - | - | 0.065" (1.7mm) | -40°C ~ 85°C |
|
ASQ10328SWITCH SNAP ACT SPST-NC 0.1A 30V Panasonic Electric Works |
3,666 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.472" (12.0mm) | - | - | 0.110" (2.8mm) | -40°C ~ 85°C |
|
|
ABV1610503SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works |
4,470 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
