Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABV1612513SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works |
4,755 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 13gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|

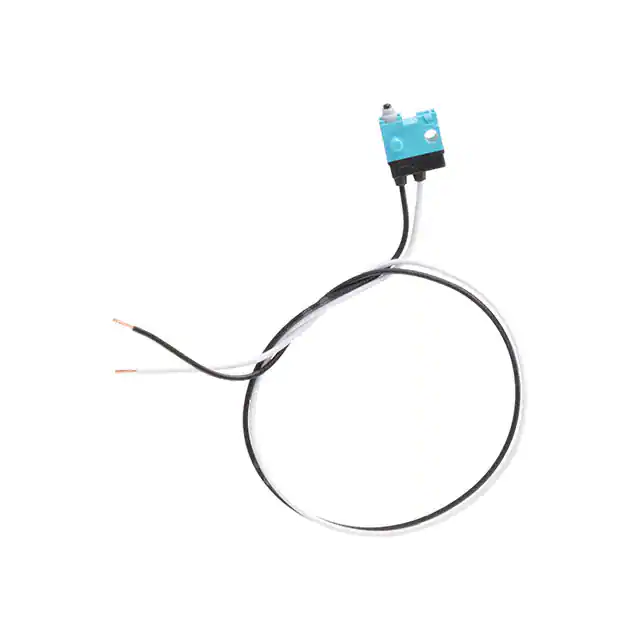

ASQ10630SWITCH SNAP ACT SPST-NO 0.1A 30V Panasonic Electric Works |
1,005 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
ABV1215603RSWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works |
4,573 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
ABV1616613SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works |
1,311 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 20gf | 0.815" (20.7mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
AVL32459-ASWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works |
2,688 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.032" (0.81mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
AH14629SWITCH SNAP ACTION SPDT 3A 125V Panasonic Electric Works |
3,433 |
|
Datasheet |
AH1 | Box | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 5.099gf | 0.268" (6.8mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
AVM3215613SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
3,810 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -25°C ~ 85°C |
|

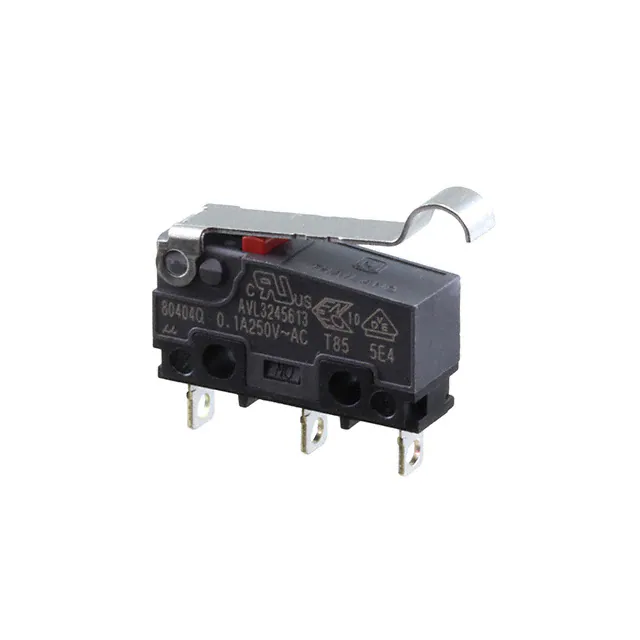

AVL3245613-ASWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works |
2,432 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.032" (0.81mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

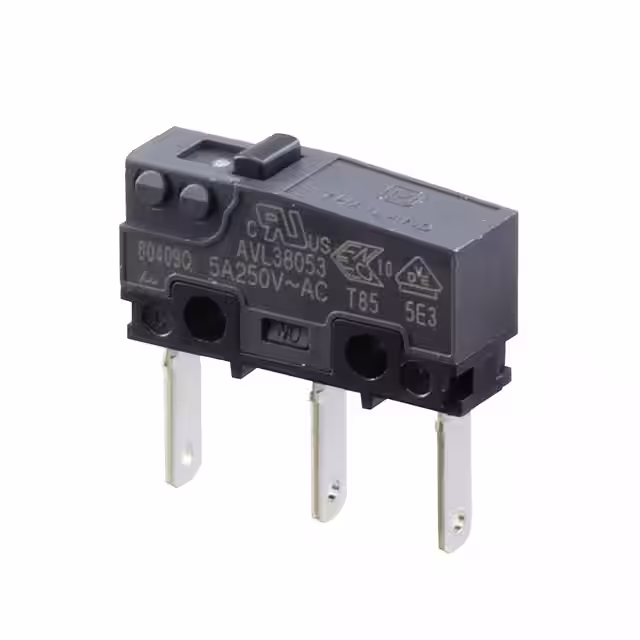

AVL38053-ASWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works |
4,314 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|

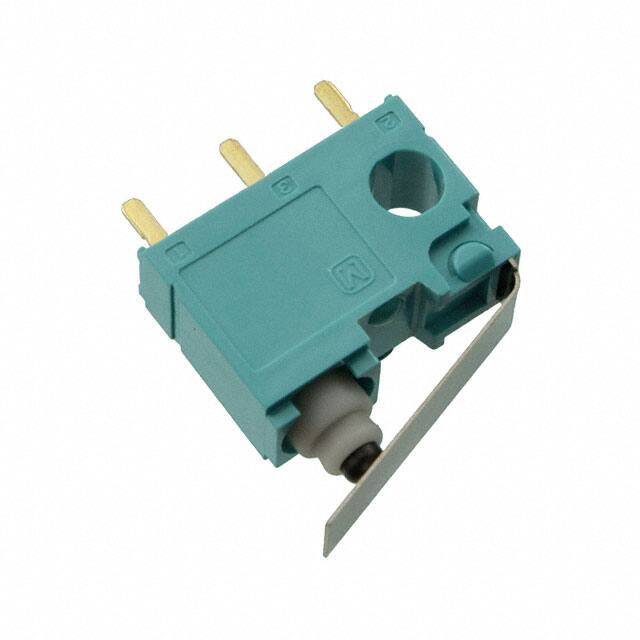

ASQ11517SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works |
4,697 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
