Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

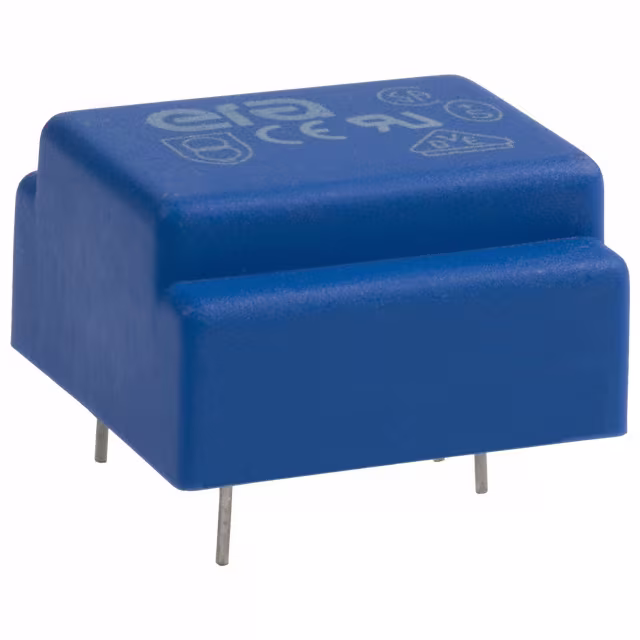

BV020-5470.0PWR XFMR LAMINATED 0.08VA CHAS Pulse Electronics |
3,690 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 6V | 13.3mA | Single | Single | No | 0.08VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 12.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5480.0PWR XFMR LAMINATED 0.08VA CHAS Pulse Electronics |
2,642 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 6V | 13.3mA | Single | Single | No | 0.08VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 12.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5482.0PWR XFMR LAMINATED 0.08VA CHAS Pulse Electronics |
1,138 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 12V | 6.67mA | Single | Single | No | 0.08VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 12.00mm | - | 0.077 lb (34.93 g) |
|
BV020-5411.0PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics |
4,766 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 6V | 58mA | Single | Single | No | 0.35VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 15.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5413.0PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics |
3,414 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 12V | 29mA | Single | Single | No | 0.35VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 15.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5416.0PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics |
1,776 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 24V | 14mA | Single | Single | No | 0.35VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 15.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5423.0PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics |
1,637 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 6V | 58mA | Single | Single | No | 0.35VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 15.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5425.0PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics |
1,857 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 12V | 29mA | Single | Single | No | 0.35VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 15.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5428.0PWR XFMR LAMINATED 0.35VA CHAS Pulse Electronics |
3,373 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 24V | 14mA | Single | Single | No | 0.35VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 15.00mm | - | 0.077 lb (34.93 g) |
|
BV020-5370.0PWR XFMR LAMINATED 0.5VA TH Pulse Electronics |
2,296 |
|
Datasheet |
- | Bulk | Obsolete | Laminated Core | 115V | 6V | 83mA | Single | Single | No | 0.5VA | Through Hole | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
