Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BV030-7234.0PWR XFMR LAMINATED 1VA TH Pulse Electronics |
4,794 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 12V | 84mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 22.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7233.0PWR XFMR LAMINATED 1VA TH Pulse Electronics |
3,591 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 9V | 111mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 22.00mm | - | 0.133 lb (60.33 g) |
|

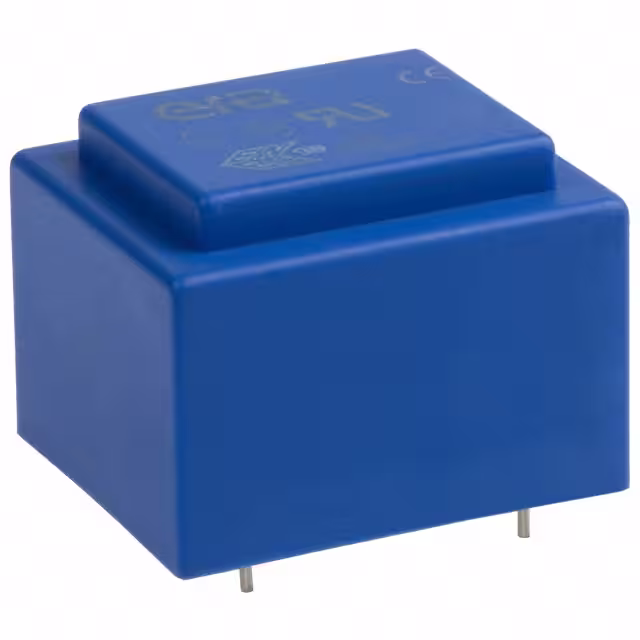

BV030-7258.0PWR XFMR LAMINATED 1.2VA TH Pulse Electronics |
2,576 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 12V | 100mA | Single | Single | No | 1.2VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7270.0PWR XFMR LAMINATED 1.2VA TH Pulse Electronics |
1,107 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 12V | 100mA | Single | Single | No | 1.2VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7151.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
4,805 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 9V | 166mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7136.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
3,706 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 12V | 125mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7162.0PWR XFMR LAMINATED 1.5VA TH Pulse Electronics |
3,113 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 12V | 125mA | Single | Single | No | 1.5VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 24.00mm | - | 0.133 lb (60.33 g) |
|

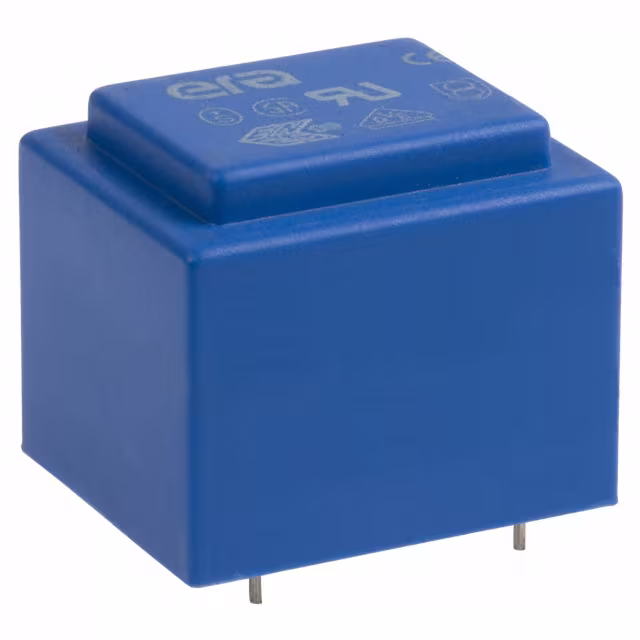

BV030-7308.0PWR XFMR LAMINATED 2VA TH Pulse Electronics |
3,451 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 18V | 111mA | Single | Single | No | 2VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 27.00mm | - | 0.133 lb (60.33 g) |
|
|
BV030-7305.0PWR XFMR LAMINATED 2VA TH Pulse Electronics |
2,913 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 9V | 222mA | Single | Single | No | 2VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 27.00mm | - | 0.133 lb (60.33 g) |
|

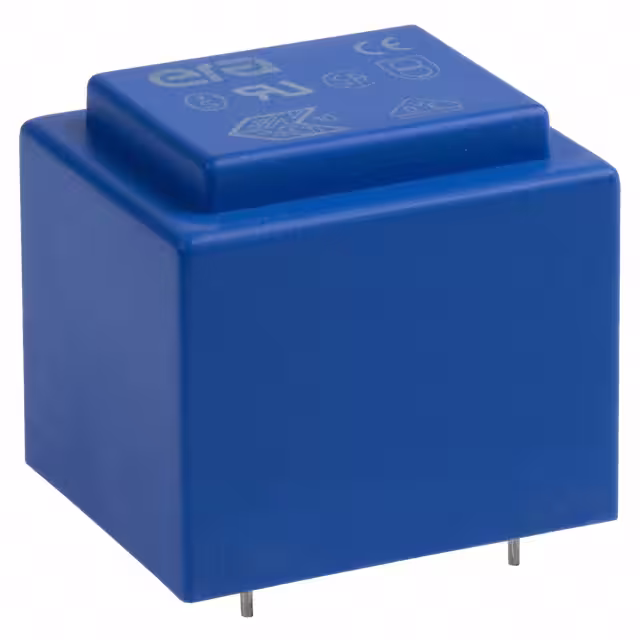

BV030-7329.0PWR XFMR LAMINATED 2.3VA TH Pulse Electronics |
3,216 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 9V | 256mA | Single | Single | No | 2.3VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 29.00mm | - | 0.133 lb (60.33 g) |
