Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

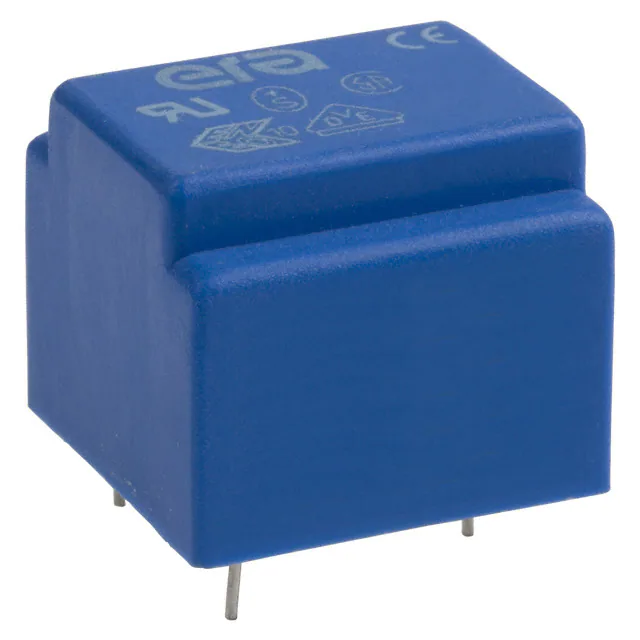

BV020-5372.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
4,360 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 12V | 42mA | Single | Single | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5375.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
1,914 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 24V | 21mA | Single | Single | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5376.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
3,490 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | Parallel 6V, Series 12V | Parallel 84mA, Series 42mA | Single | Dual | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5382.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
2,709 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 6V | 83mA | Single | Single | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5384.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
2,076 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 12V | 42mA | Single | Single | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5387.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
1,255 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | 24V | 21mA | Single | Single | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5388.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
3,045 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | Parallel 6V, Series 12V | Parallel 84mA, Series 42mA | Single | Dual | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5390.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
2,460 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | Parallel 12V, Series 24V | Parallel 42mA, Series 21mA | Single | Dual | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|
|
BV020-5393.0PWR XFMR LAMINATED 0.5VA CHAS MT Pulse Electronics |
2,168 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 230V | Parallel 24V, Series 48V | Parallel 20mA, Series 10mA | Single | Dual | No | 0.5VA | Chassis Mount | PC Pin | 22.00mm L x 23.00mm W | 19.00mm | - | 0.077 lb (34.93 g) |
|

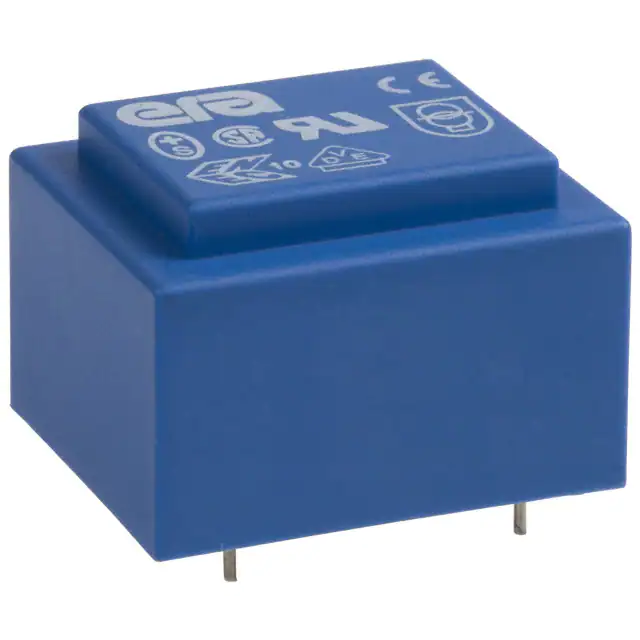

BV030-7221.0PWR XFMR LAMINATED 1VA TH Pulse Electronics |
2,459 |
|
Datasheet |
- | - | Obsolete | Laminated Core | 115V | 9V | 111mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.50mm L x 27.50mm W | 22.00mm | - | 0.133 lb (60.33 g) |
