Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

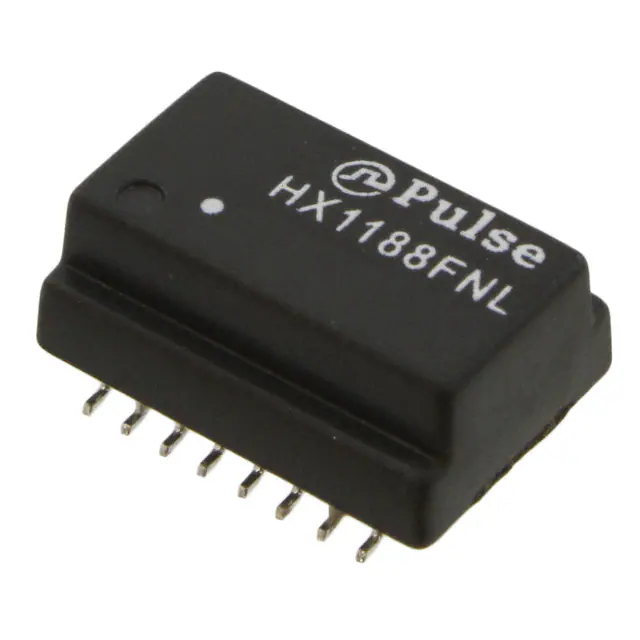

HX1188FNLTXFRMR MAGNETIC 1PORT 1:1 10/100 Pulse Electronics |
11,595 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|
PH9185.011NLTRANSFORMER 750UH 1:1 SMD Pulse Electronics |
4,759 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PH9185.012NLTTRANSFORMER 450UH 1:2 SMD Pulse Electronics |
3,227 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

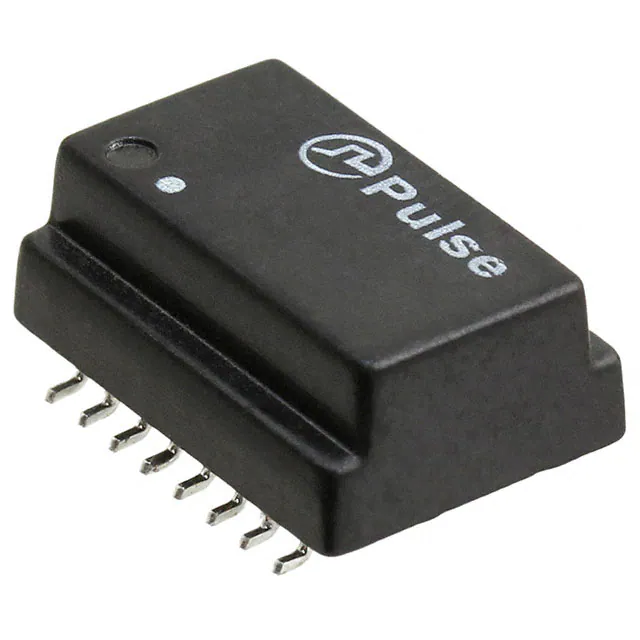

HX1198FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
3,211 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
|
PH9185.034NLTTRANSFORMER 750UH 3:4 SMD Pulse Electronics |
1,344 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PH9185.013NLTTRANSFORMER 200UH 1:3 SMD Pulse Electronics |
910 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
PA1137NLTXFRMR 5V 13.5W 127UH POE EP13 Pulse Electronics |
903 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 127µH | - | 1:0.125:0.208 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|

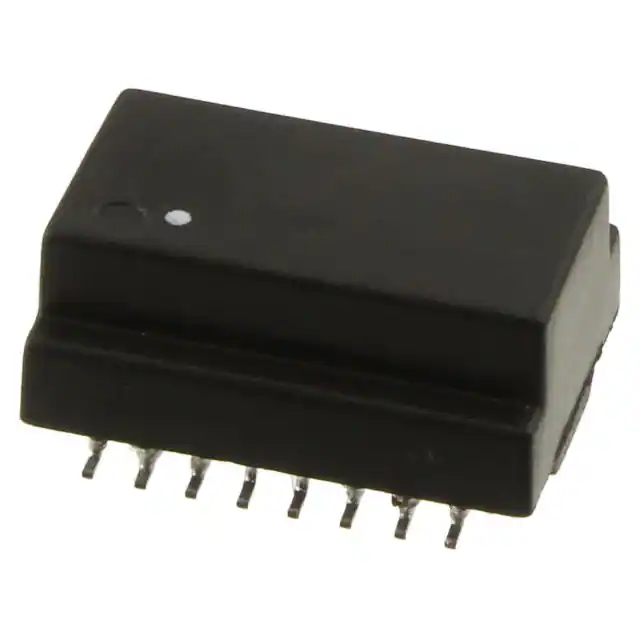

HX1260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,580 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|

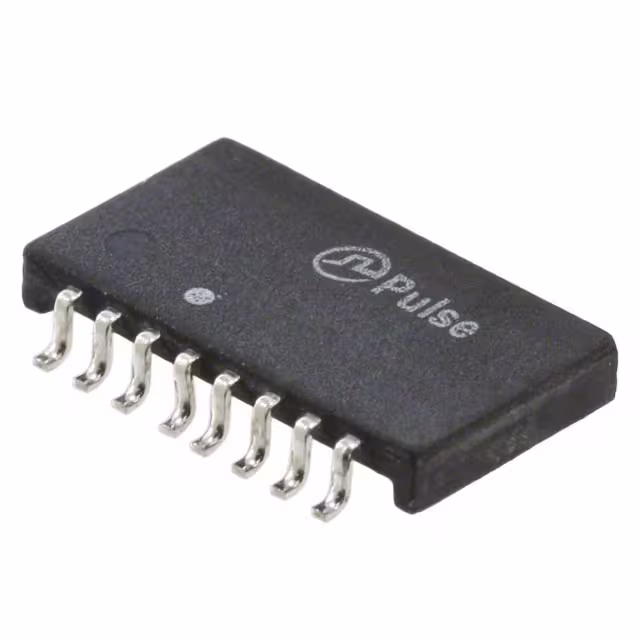

HX2326NLTMODULE 10/100B-T POE SMD Pulse Electronics |
2,586 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HM2101NLTXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
3,668 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
