Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

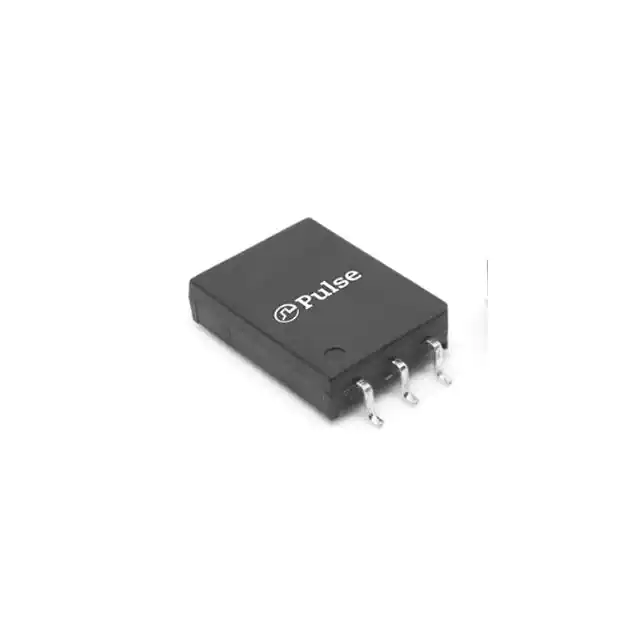

HM2113ZNLTXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
1,937 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.354" L x 0.478" W (9.00mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|
H1102FNLTPULSE XFMR LAN 350UH SMD Pulse Electronics |
9,076 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

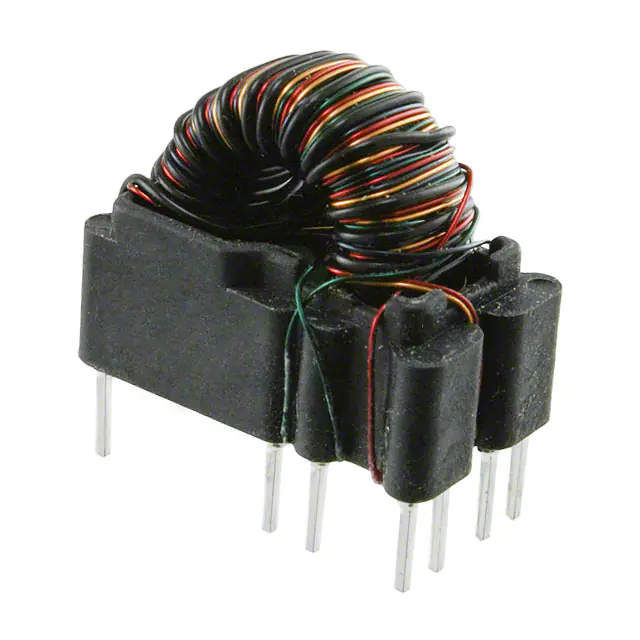

P0585NLPULSE XFMR 1:1:1 450UH Pulse Electronics |
800 |
|
Datasheet |
- | Tube | Active | - | 450µH | 95VµS | 1:1:1:1:1 | Through Hole | 0.810" L x 0.480" W (20.57mm x 12.19mm) | 0.750" (19.05mm) | -40°C ~ 125°C | - | - |
|
|

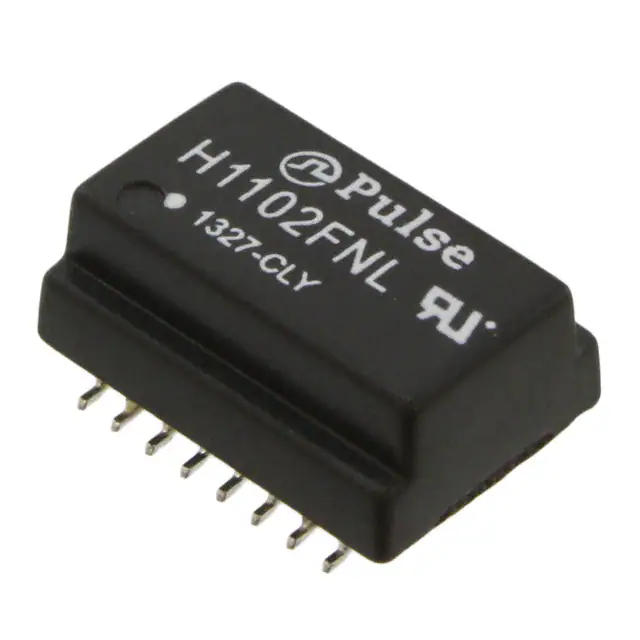

H1102FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
730 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

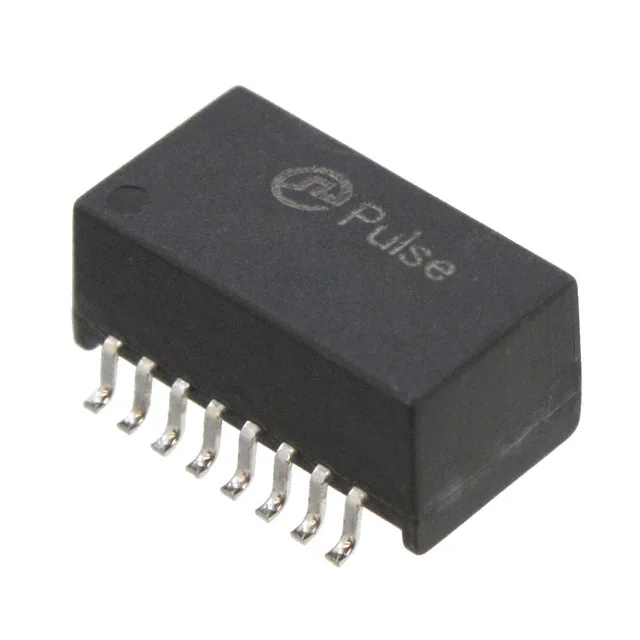

H2019FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,193 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
AGST5009BMDL SMD 2.5G SINGLE PORT N/A Pulse Electronics |
2,943 |
|
Datasheet |
AGST5009xx | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | - | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | 0°C ~ 70°C | - | - |
|
|
HX2019FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
1,389 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|

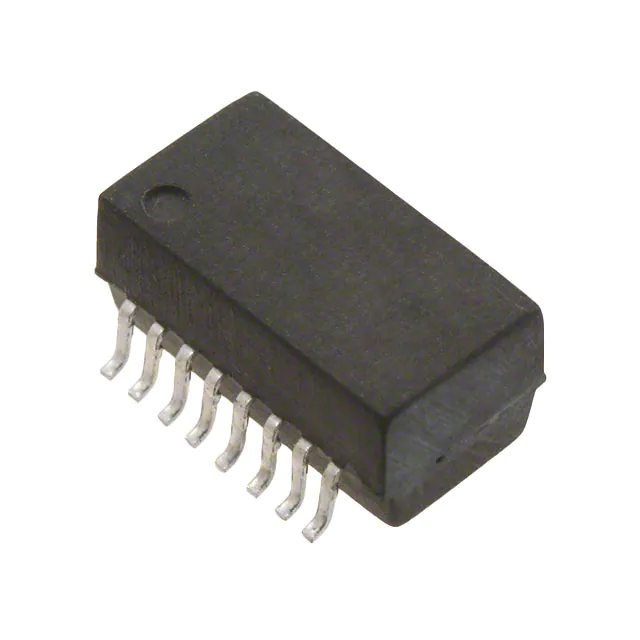

T1094NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH Pulse Electronics |
111 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

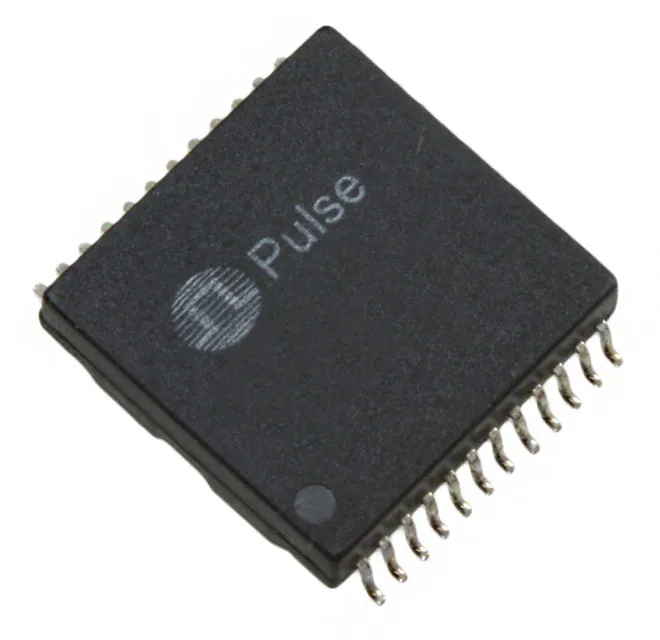

HX1294NLMODULE XFRMR LAN 10/100 SMD Pulse Electronics |
5,703 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538" L x 0.599" W (13.67mm x 15.21mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|

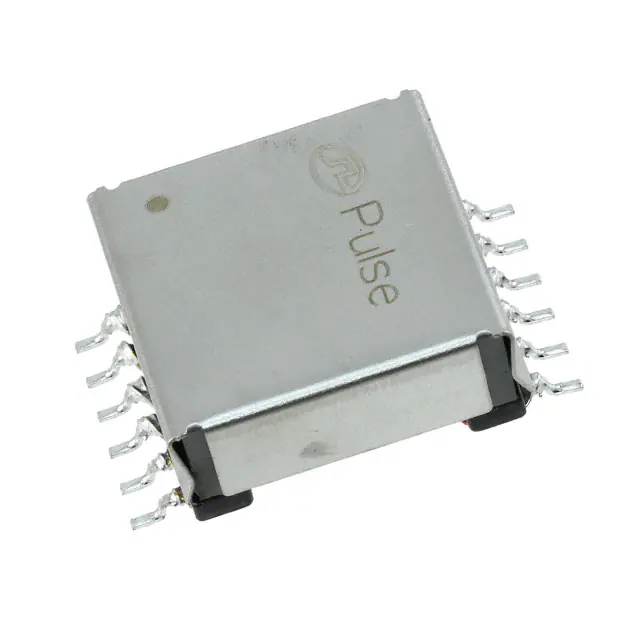

PA1736NLTPULSE XFMR 20.5UH Pulse Electronics |
278 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 20.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
