Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HXE2017HLTRANSF ESS BMS 1500V 6.0KV Pulse Electronics |
4,519 |
|
Datasheet |
HXE20xxHL | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.733" L x 0.492" W (18.63mm x 12.50mm) | 0.344" (8.74mm) | -40°C ~ 125°C | - | - |
|
PA0769NLTPULSE XFMR 89.2UH Pulse Electronics |
2,338 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 89.2µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA1477NLTPULSE XFMR 38.3UH Pulse Electronics |
2,643 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 38.3µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA2114NLPULSE XFMR 164UH Pulse Electronics |
1,202 |
|
Datasheet |
- | Tray | Active | - | 164µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2114NLTPULSE XFMR 164UH Pulse Electronics |
1,080 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 164µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

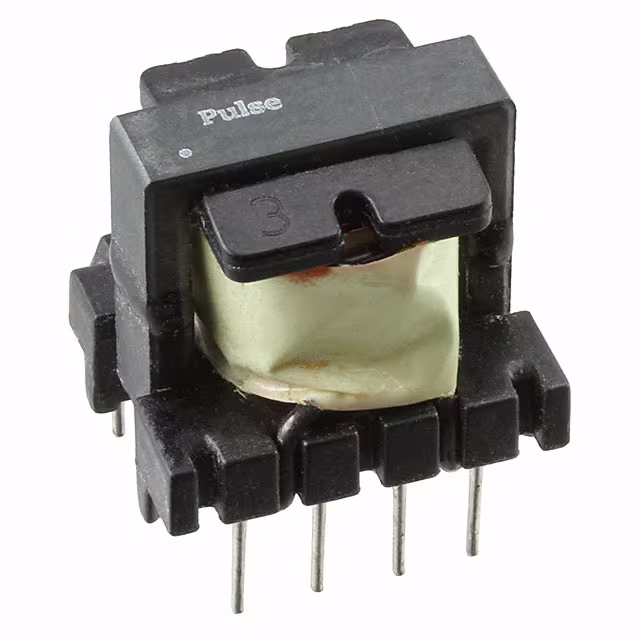

PA2531NLPULSE XFMR 4.5UH Pulse Electronics |
1,302 |
|
Datasheet |
- | Tray | Active | - | 4.5µH | - | - | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.709" (18.00mm) | -40°C ~ 130°C | - | - |
|
|
PA2053NLTPULSE XFMR 292UH Pulse Electronics |
4,171 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 292µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
H1138NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
3,949 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
QVP2014RS2MDL 5G SINGLE PORT N/A Pulse Electronics |
3,734 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
QVP6014RBMMDL 5G 1 PORT POE 60W Pulse Electronics |
4,944 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
