Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0769NLPULSE XFMR 89.2UH Pulse Electronics |
2,136 |
|
Datasheet |
- | Tube | Active | - | 89.2µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
VP9014RM HFMDL 1G 1 PORT POE 90W Pulse Electronics |
1,256 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
H1102TPULSE XFMR 1:1 TX 1:1 RX Pulse Electronics |
2,047 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
23Z356SMQNLTRANSFORMER 10BASE-T LAN 16SOIC Pulse Electronics |
2,131 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

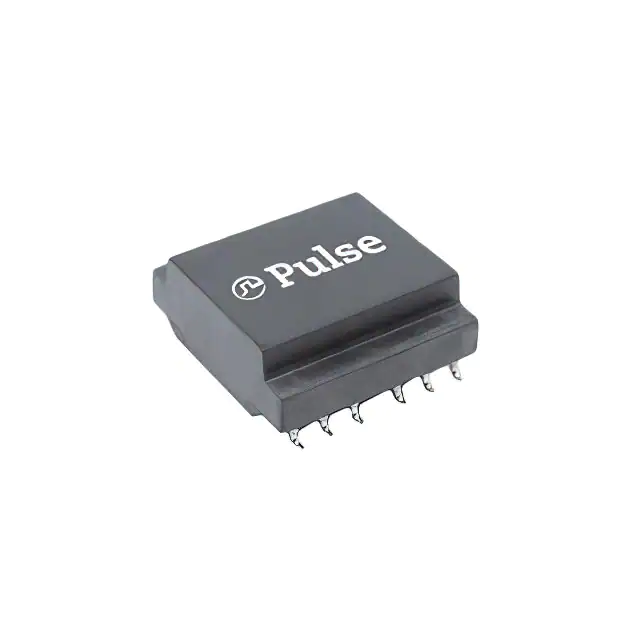

BX6158NLTTRANSFORMER 20UH 1:1:1 3KV SMT Pulse Electronics |
3,515 |
|
Datasheet |
BX615xNL | Tape & Reel (TR) | Active | - | 20µH | - | 1:1:1 | Surface Mount | 0.445" L x 0.411" W (11.31mm x 10.43mm) | 0.287" (7.30mm) | -40°C ~ 125°C | - | - |
|
|
H1199NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,184 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
PE-68023NLTXFRMR LAN ISOL 1CT:2CT 10B-T SMD Pulse Electronics |
3,375 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
|
QVP2014SMDL 5G SINGLE PORT N/A Pulse Electronics |
3,646 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
|
|
PA2291NLPULSE XFMR 57.6UH Pulse Electronics |
1,309 |
|
Datasheet |
- | Tray | Active | - | 57.6µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA2291NLTPULSE XFMR 57.6UH Pulse Electronics |
1,814 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 57.6µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
