Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T3002NLTXFRMR T3/DS3/E3/STS-1 1:2CT SMD Pulse Electronics |
1,419 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
T1SB01MDL 10G SINGLE PORT N/A Pulse Electronics |
2,401 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 90°C | - | - |
|
|
HX4024NLMDL SIN 2.5GD 1:1 SMT TU Pulse Electronics |
2,793 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX4024NLTMDL SIN 2.5GD 1:1 SMT TR Pulse Electronics |
1,336 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX1224NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,624 |
|
- |
- | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

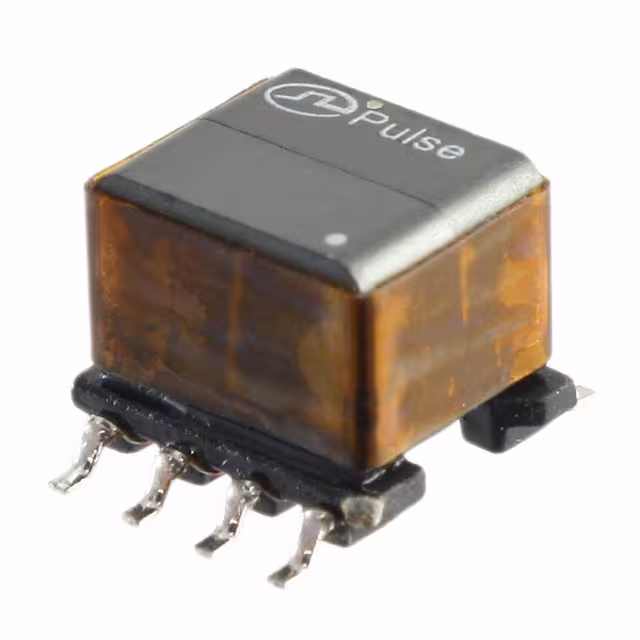

PA1281NLTXFRMR 12V 3W 310UH POE EP7 SMD Pulse Electronics |
2,806 |
|
Datasheet |
EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 310µH | - | 1:0.682:0.682 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
|
T1146NLXFRMR 1:2/2.4 / 1:0.79/1 1/1MH Pulse Electronics |
1,042 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1:2/2.4, 1:0.79/1 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
H0009TPULSE XFMR 1:1 TX 1:1 RX Pulse Electronics |
1,133 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|
PA1066NLTPULSE XFMR 137UH Pulse Electronics |
3,298 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 137µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
40SS1041AX HFMDL LAN 10/100BT QUAD SMD Pulse Electronics |
3,268 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
