Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EX2024NLTXFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics |
3,997 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
PE-2227XNLTRANSFORMER 1:1 700VRMS Pulse Electronics |
4,501 |
|
Datasheet |
- | Tube | Active | - | 500µH | 46VµS | 1:1 | Through Hole | 0.650" L x 0.443" W (16.51mm x 11.25mm) | 0.400" (10.16mm) | 0°C ~ 70°C | - | - |
|
HX6106NLGIGABIT POE+ TRANSFORMER/CMC Pulse Electronics |
4,186 |
|
- |
- | Bulk | Active | - | - | - | - | - | 0.715" L x 0.511" W (18.16mm x 12.98mm) | 0.410" (10.41mm) | - | - | - |
|
T7015NLTXFRMR 64KBPS 1:2CT/1:2CT 20MH Pulse Electronics |
1,396 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
HX5009NLTMODULE SINGLE GIGABIT 1 PORT Pulse Electronics |
2,691 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|

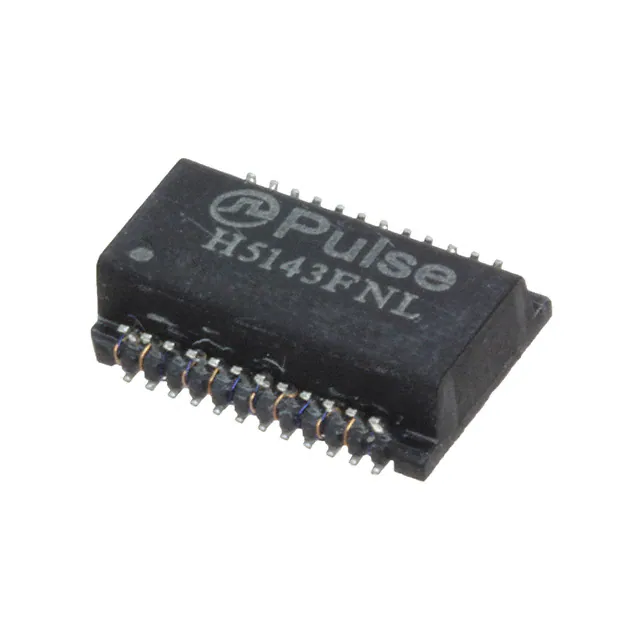

H5143FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,332 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
HU4009NLTMDL, SIN 2.5G, 1:1, SMT Pulse Electronics |
4,783 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.715" L x 0.630" W (18.16mm x 16.01mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
|
GS9015RM LFMDL 1G DUAL PORT 4PAIR POE 90W Pulse Electronics |
4,952 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | -40°C ~ 85°C | - | - |
|
|
T1231NLTXFRMR T1/E1/CEPT/ESDN-PRI 1:2.4 Pulse Electronics |
3,489 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
HU4006NLTMDL, SIN 2.5G, 1:1, SMT Pulse Electronics |
2,611 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.540" L x 0.600" W (13.72mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
