Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX5G1010NLTMDL SIN 5GD 1:1 SMT TR Pulse Electronics |
3,108 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 120µH | - | 1:1 | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|

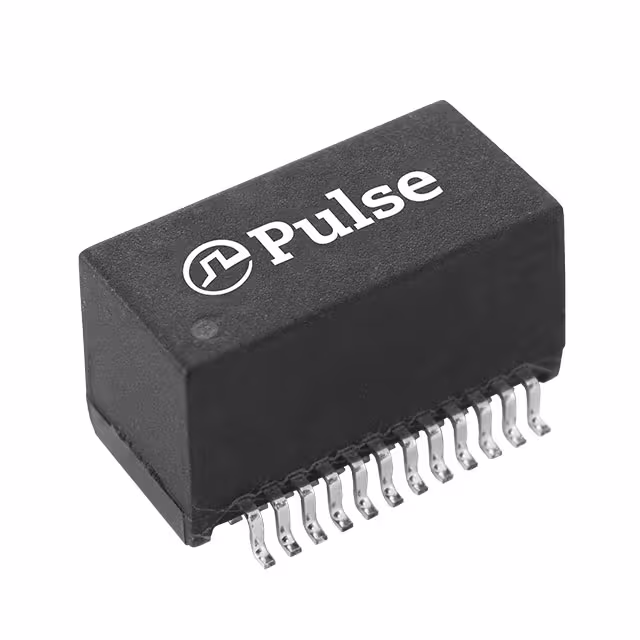

HU4108NLTMDL, SIN 2.5G, 1:1, SMT Pulse Electronics |
3,475 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | - | Surface Mount | 0.600" L x 0.430" W (15.24mm x 10.93mm) | 0.340" (8.63mm) | 0°C ~ 70°C | - | - |
|
|
GH5610RS LFMDL 1G DIP QUAD PORTS POE+ 30W Pulse Electronics |
1,570 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142" L x 1.043" W (29.00mm x 26.50mm) | 0.512" (13.00mm) | 0°C ~ 70°C | - | - |
|
H7018FNLMODULE 10GBASE-T 1.5KVRMS SMD Pulse Electronics |
2,069 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
HDX8004NLTMDL SIN HDBT 1:1 POEP SM TR Pulse Electronics |
1,120 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
HD8006FNLTMDL SIN HDBT 1:1 POEPP SMT TR Pulse Electronics |
2,804 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.625" W (17.73mm x 15.88mm) | 0.310" (7.87mm) | 0°C ~ 70°C | - | - |
|
|
H1036LNLTXFRMR MODULE 4PORT 1:1 10/100 Pulse Electronics |
4,458 |
|
- |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
HU4108NLMODULE MAGNETIC SNGL 2.5GB SMT Pulse Electronics |
4,629 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.340" (8.63mm) | 0°C ~ 70°C | - | - |
|
|
PE-68025QNLTMODULE INTERFACE 10BASE-T SMD Pulse Electronics |
1,532 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

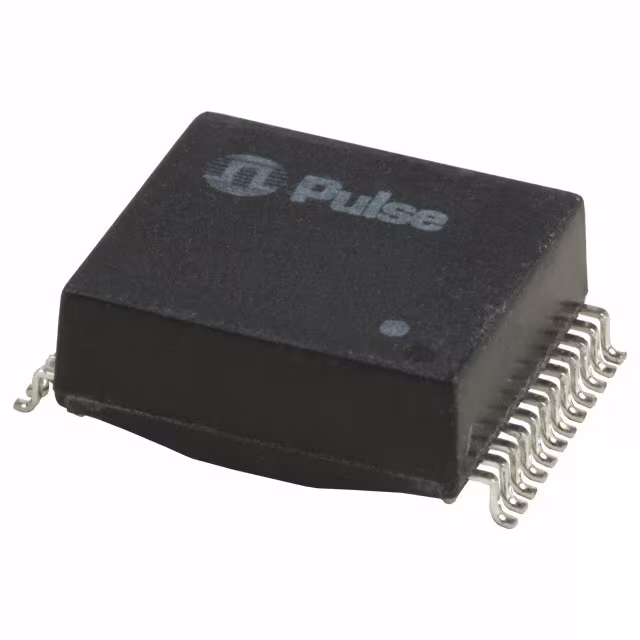

H5009NLMODULE XFORMR GIGABIT SINGLE LAN Pulse Electronics |
3,755 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
