Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC10G00LAN XFMR CHIP 1:1 10G SMD Pulse Electronics |
3,649 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC10G00PLAN XFMR CHIP 1:1 10G POE 60W Pulse Electronics |
4,539 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T, Power Over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC10G001PLAN XFMR CHIP 1:1 10G POE 90W Pulse Electronics |
2,748 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T, Power Over Ethernet (PoE) | 100µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.165" (4.19mm) | -40°C ~ 85°C | - | - |
|

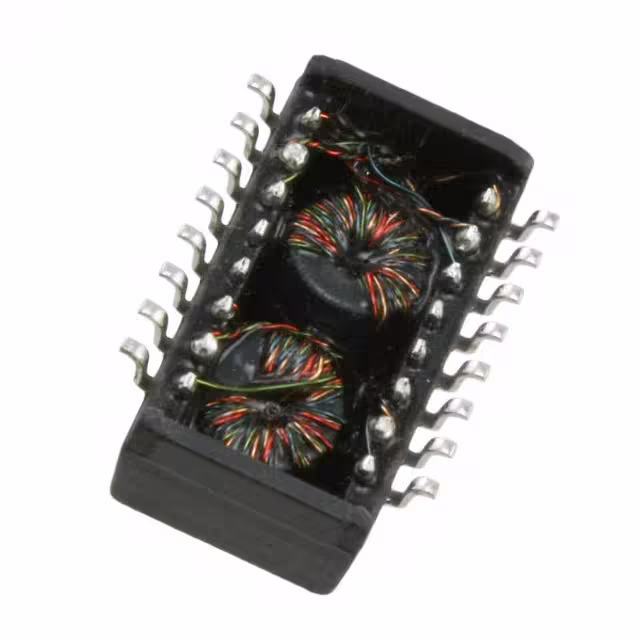

H1197NLXFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics |
3,263 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
HM2102NLXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
2,192 |
|
Datasheet |
- | Tube | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.580" W (14.81mm x 14.73mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
|
|
HX1339NLTMDL SIN 100D 1:1 SMT TR Pulse Electronics |
2,305 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.598" L x 0.500" W (15.20mm x 12.70mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
PA4375NLCMC GEAR WOUND COIL Pulse Electronics |
1,686 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
LG1P109N LFMDL 1G DIP SINGLE PORT N/A Pulse Electronics |
2,204 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 0.661" L x 0.335" W (16.80mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
PM2180.083NLXFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics |
4,015 |
|
Datasheet |
PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.16mH | 23.6VµS | 8:3CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
PM2180.021NLXFMR GATE-DR 2CT:1CT SM NPB Pulse Electronics |
2,960 |
|
Datasheet |
PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.16mH | 23.6VµS | 2:1CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
