Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1086NLXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
1,662 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HM1237NLXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
2,769 |
|
Datasheet |
- | Tube | Active | - | 650µH | - | 1:1 | Surface Mount | 0.455" L x 0.375" W (11.56mm x 9.53mm) | 0.225" (5.72mm) | - | - | - |
|
T1212NLXFRMR 1CT:1CT/1CT:2CT 1.20MH SMD Pulse Electronics |
2,170 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
H5G1002NLPULSE XFMR 180UH Pulse Electronics |
4,388 |
|
Datasheet |
- | Tube | Active | - | 180µH | - | - | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.19mm) | 0.260" (6.60mm) | - | - | - |
|
H5015NLTRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics |
2,159 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.697" L x 0.480" W (17.70mm x 12.20mm) | 0.185" (4.70mm) | 0°C ~ 70°C | - | - |
|
PE-68828NLXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH Pulse Electronics |
4,439 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

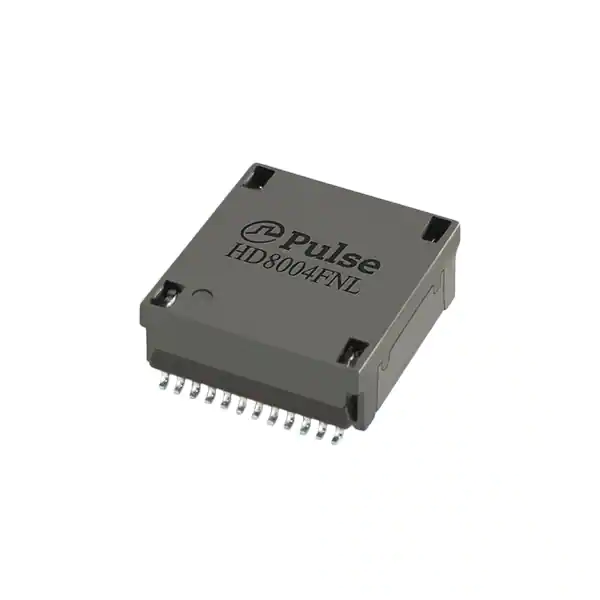

HD8004FNLTTRANSFORMER HDBASE-T 34W Pulse Electronics |
3,285 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 180µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
TX1267NLTXFRMR 4PORT 1:2 1.2MH SMD Pulse Electronics |
4,950 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.275" (6.99mm) | -40°C ~ 85°C | - | - |
|
HX5014FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
1,895 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
PH9185.083NLTRANSFORMER 560UH 8:3 SMD Pulse Electronics |
1,450 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
