Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QVP2014RMMDL 5G SINGLE PORT N/A Pulse Electronics |
1,610 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.691" L x 0.480" W (17.55mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|

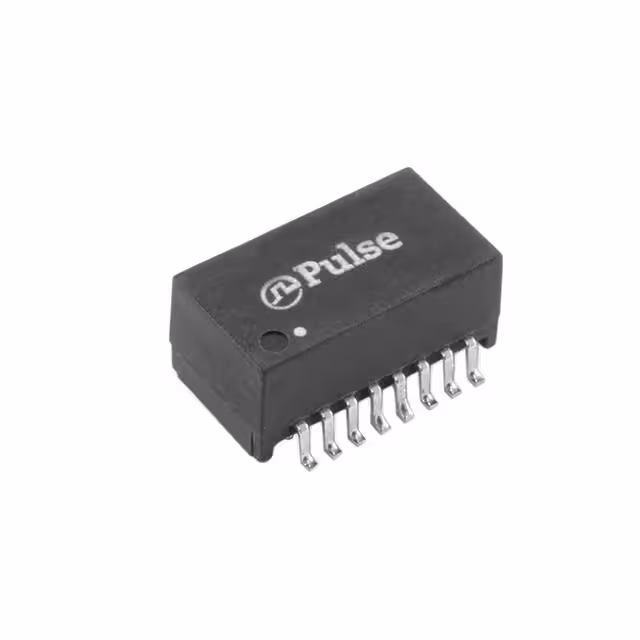

E2467NLXFRMR ISOL 10BASE-T 1:2 SMD Pulse Electronics |
4,753 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 20µH, 100µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | - | - | - |
|
|
GS6014 LFMDL 1G 2 PORT 4PAIR POE 60W Pulse Electronics |
2,809 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.283" (7.20mm) | 0°C ~ 70°C | - | - |
|
|
HX1341NLMDL SIN 100D 1:1 SMT TU Pulse Electronics |
1,601 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

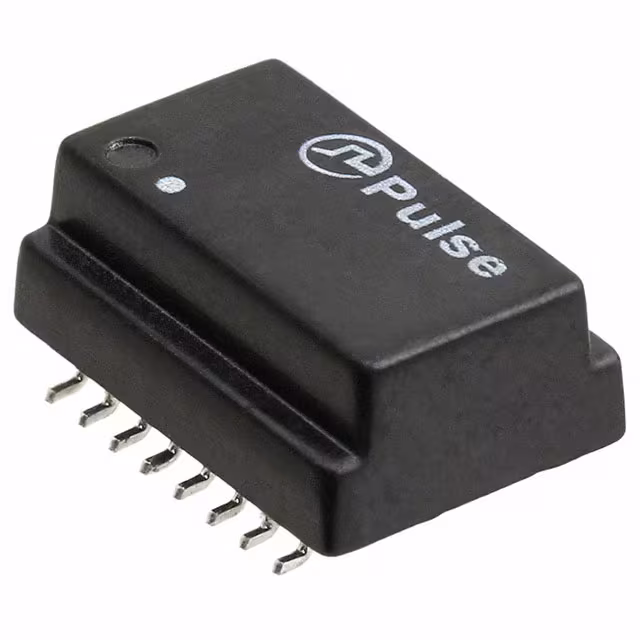

H1100FNLPULSE XFMR 2CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,991 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 350µH | - | 2CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
H1100FNLTMDL SIN 100D 2:1 SMT TU Pulse Electronics |
4,150 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
24SH10410 HFMDL LAN 1GBT POE+ 30W SMD Pulse Electronics |
2,915 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
LG2P109NAM LFMDL 1G DIP DUAL PORT N/A Pulse Electronics |
2,363 |
|
- |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.280" L x 0.335" W (32.50mm x 8.50mm) | 0.457" (11.60mm) | -40°C ~ 85°C | - | - |
|
|
AVP9014RMMDL 2.5G 1 PORT 4PAIR POE 90W Pulse Electronics |
1,151 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PE-65363NLXFRMR T1/CEPT/ISDN-PRI 1:4CT T/H Pulse Electronics |
3,534 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 500µH | - | 1:4CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
