Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

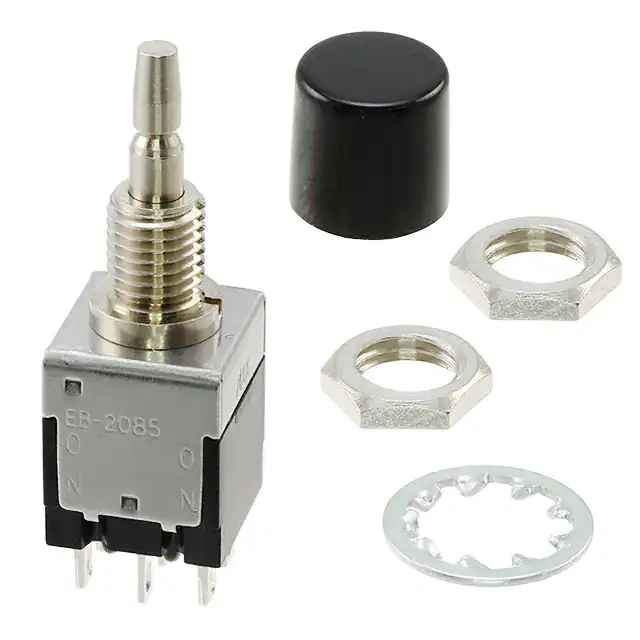

EB2085-BASWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,405 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
BB26AV-HASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
100 |
|
Datasheet |
BB | Box | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
M2B15AA5G40-FASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,110 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
SB4011NOHG-2ASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,935 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
SB4011NOHG-2ESWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,957 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

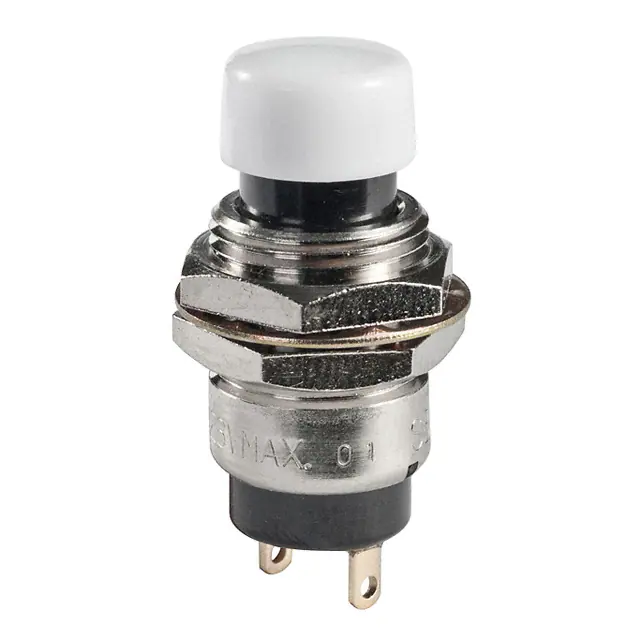

SB4011NOHG-2BSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
4,210 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

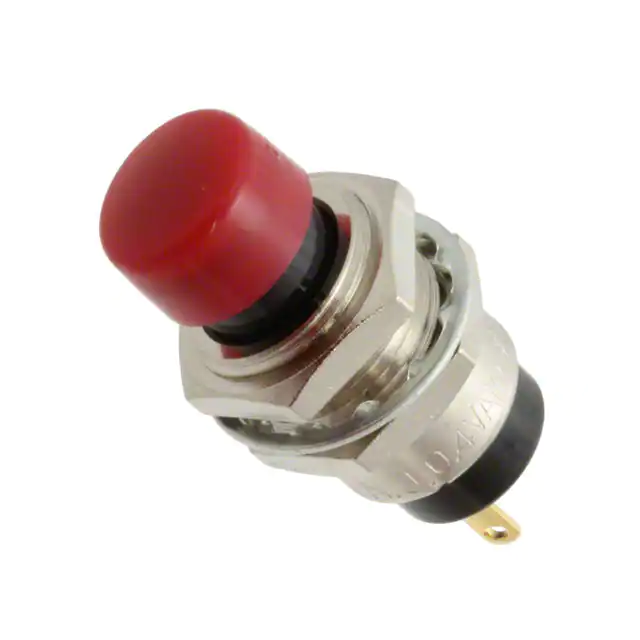

SB4011NOHG-2CSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
2,661 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
UB15SKW03N-GSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,289 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
UB15SKW03N-BSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,666 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

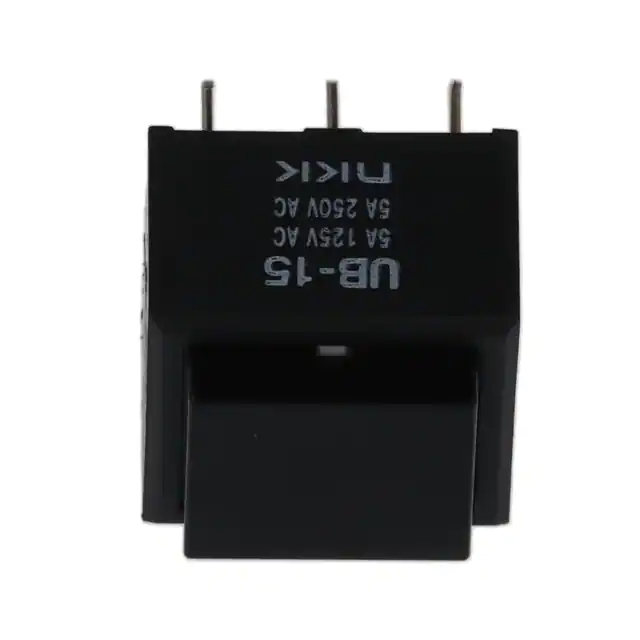

UB15SKW03N-ASWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,850 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
