Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

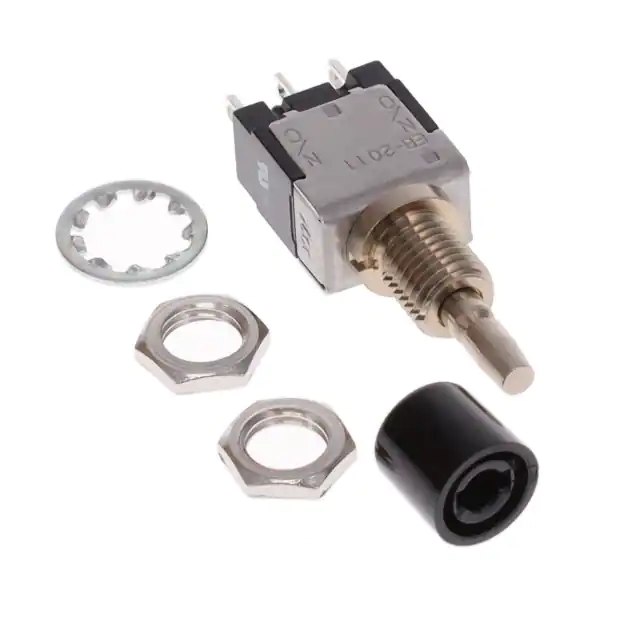

EB2011-BASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,269 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
KP0115ACAKG03RGBPSWITCH PB MINI ILLUMINATED RGB NKK Switches |
4,330 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0215ACAKG03RGBPSWITCH PB MINI ILLUMINATED RGB NKK Switches |
1,891 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0215ACBKG03RGBPSWITCH PB MINI ILLUMINATED RGB NKK Switches |
4,336 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
|
|
KP0115ANAKG03RGBPSWITCH PB MINI ILLUMINATED RGB NKK Switches |
2,206 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
KP0215ANAKG03RGBPSWITCH PB MINI ILLUMINATED RGB NKK Switches |
2,608 |
|
Datasheet |
KPRGB | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Blue/Green/Red | 2.0, 2.9, 2.9 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

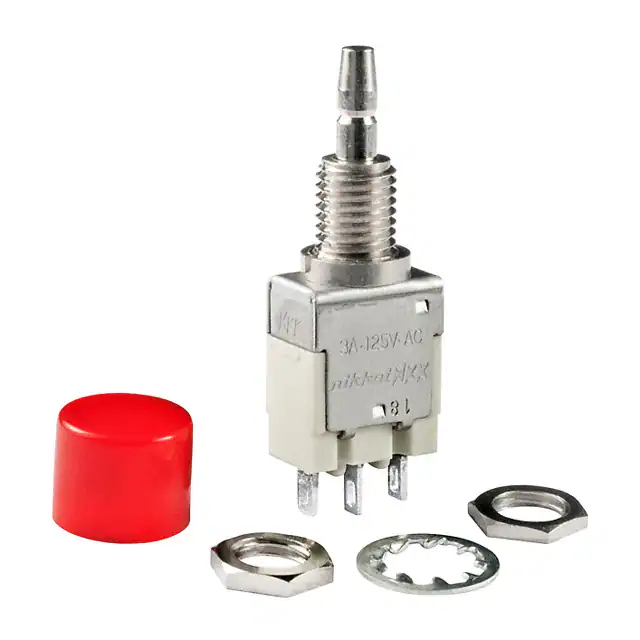

EB2011-CCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
120 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
EB2011-CASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,885 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
EB2011-CHSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,332 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Gray | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

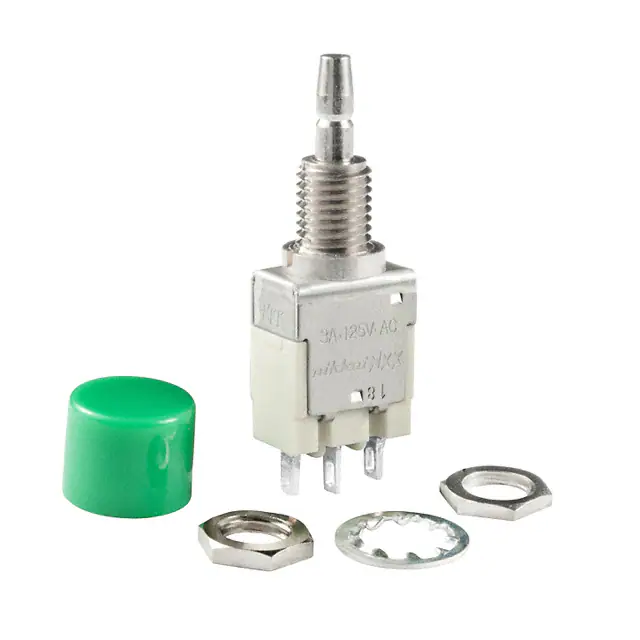

EB2011-CFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,469 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
