Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

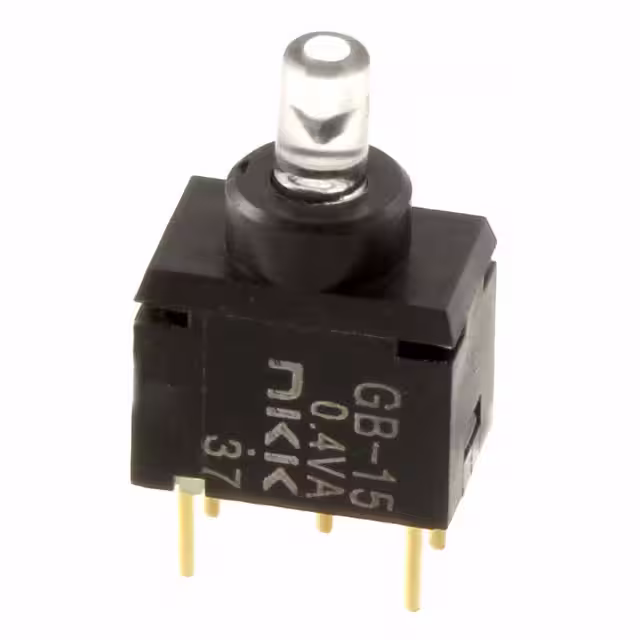

GB15JPFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,094 |
|
Datasheet |
GB | Box | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|
UB15SKG03N-ASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
100 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
UB15SKG03N-CSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,799 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
SB4011NOM-2CSWITCH PUSH SPST-NO 3A 125V NKK Switches |
2,653 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

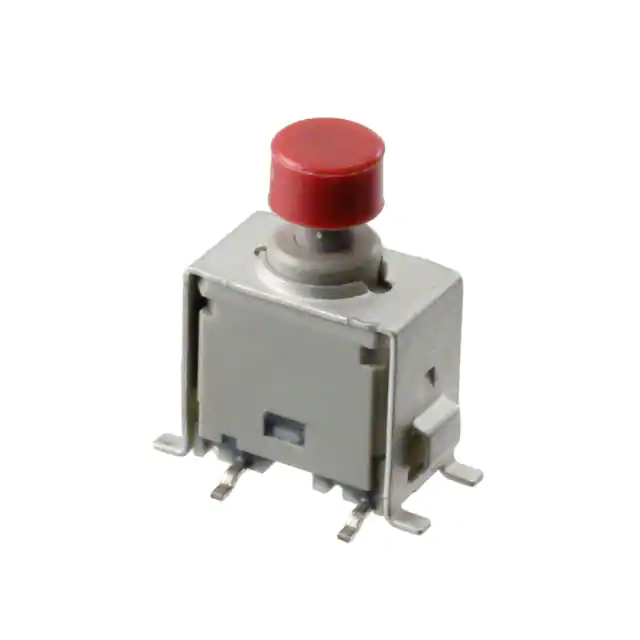

G3B15AB-S-YCSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,402 |
|
Datasheet |
G3B | Bulk | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
SB4011NOM-2GSWITCH PUSH SPST-NO 3A 125V NKK Switches |
1,929 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
UB15SKG03N-GSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,237 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

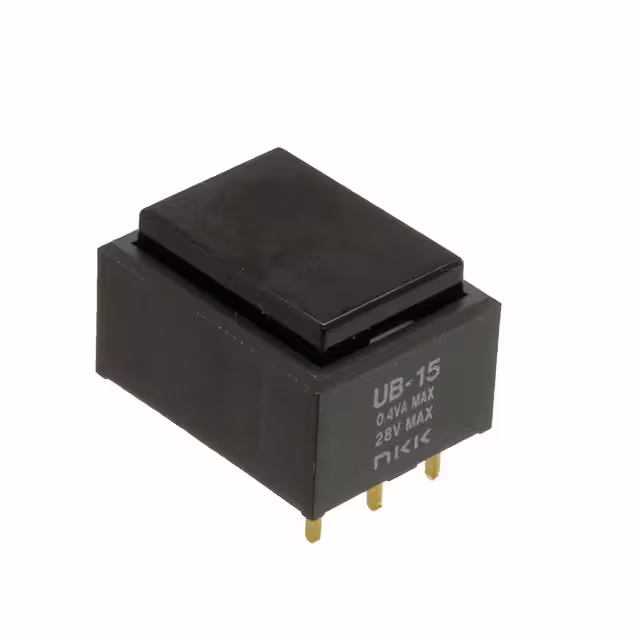

UB15RKG03N-ASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,797 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
UB15KKW01N-BSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,237 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

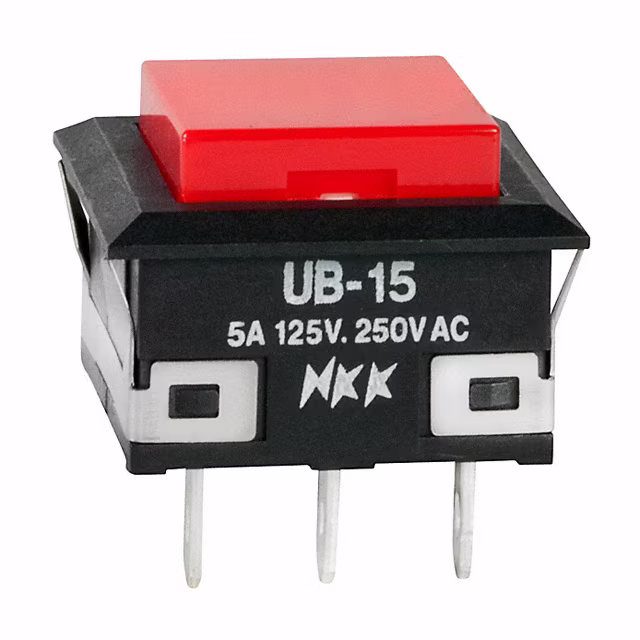

UB15KKW01N-CSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,707 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
