Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB226KKW01NSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,066 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
UB15NBKG015FSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,949 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
MBN12SB1W01-DALARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
4,579 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

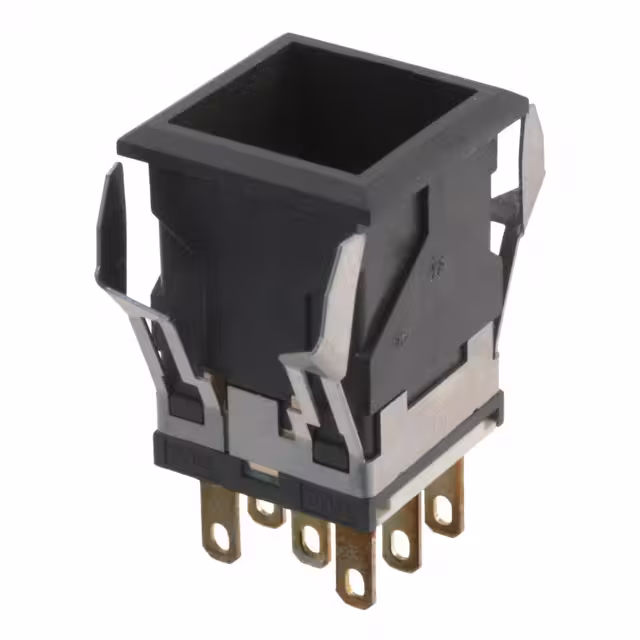

LB26SKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,319 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
KP0115ANBKG03CJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
3,542 |
|
Datasheet |
KP | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
YB15RKW01-EBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,472 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB15CKW01-EBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,713 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
MBN25SS1W01BUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
4,487 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SS2G45BRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
3,621 |
|
- |
M | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | - | - |
|
|
MBNR15A2G30SNAP-ACTION BRACKET PC MOUNT PUS NKK Switches |
2,714 |
|
- |
MB2400 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
