Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN25SB1W03LARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
4,568 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|

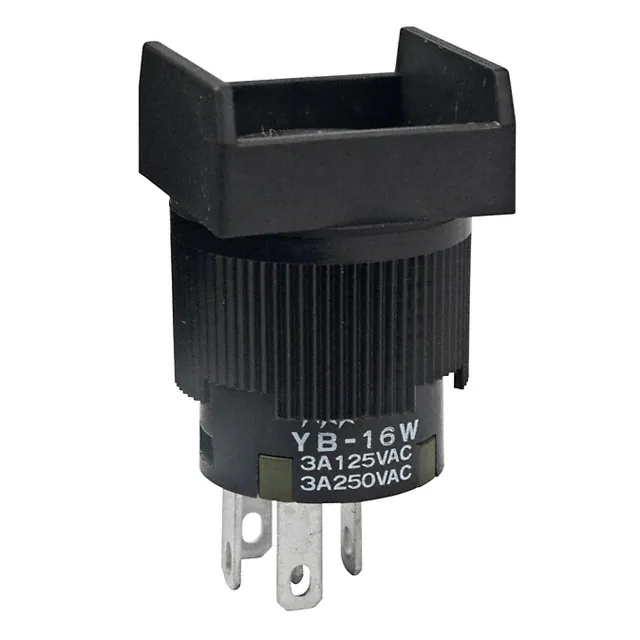

YB16WSKW01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,131 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
UB215KKW015DSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,011 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
UB215KKW015CSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,198 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
YB15NKW01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,131 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
UB215KKW015FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,690 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

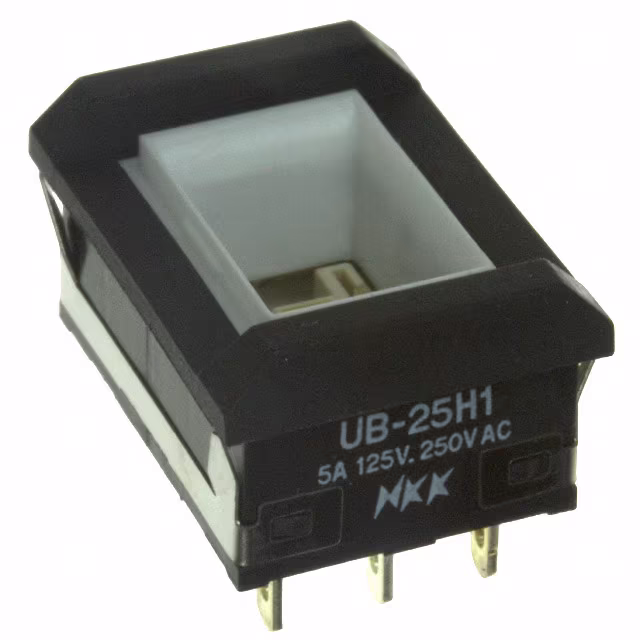

UB25NBKW015DSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,370 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

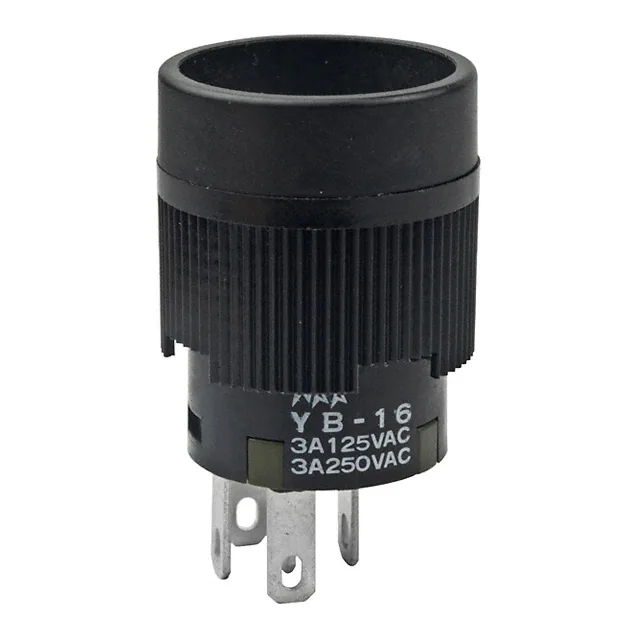

YB16CKW01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,450 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
LB25RKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,091 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
UB215KKG015CSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,664 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Process Sealed | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
