Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

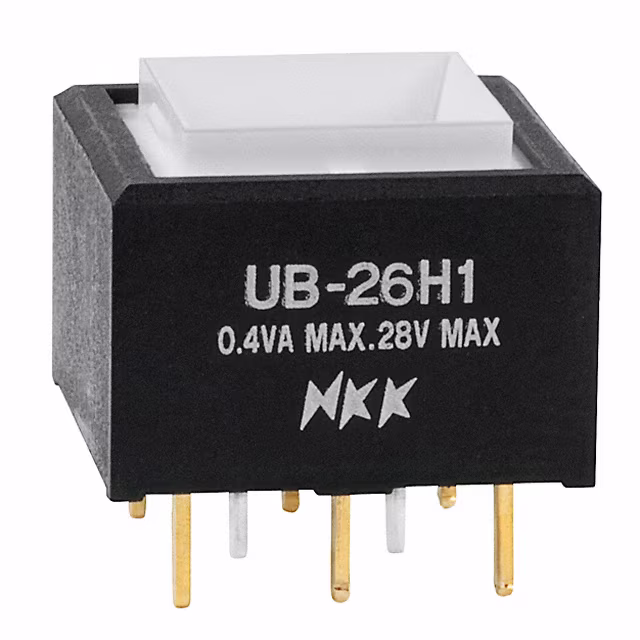

UB26SKG035FSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,965 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
MBN25SS1W01-BABUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
2,110 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
HB15SKW01-5C-ABSWITCH PUSH SPDT 0.1A 30V NKK Switches |
2,827 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
MBN25SS1W01-CABUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,351 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN25SS1W01-CCBUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
4,183 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
UB16NBKG015C-CCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,611 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
UB215SKG035DSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,224 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | RTV Adhesive Sealant on Terminals | - | -25°C ~ 50°C |
|
UB215SKG035CSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,396 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | RTV Adhesive Sealant on Terminals | - | -25°C ~ 50°C |
|
JPL26B/U-BSWITCH PUSH DPST 16A 125V NKK Switches |
3,386 |
|
Datasheet |
JP | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Ivory | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
YB15SKW01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,795 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
