Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB15KKW01N-FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,251 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
G3B15AH-R-YCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
500 |
|
Datasheet |
G3B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

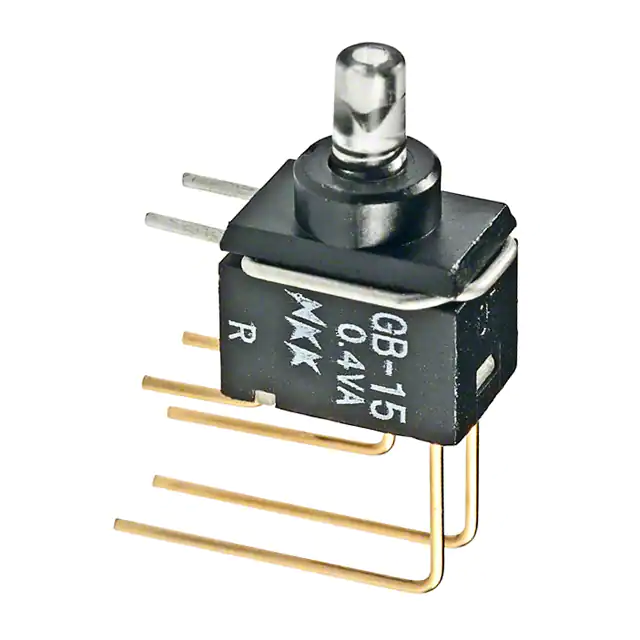

GB15JVCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
688 |
|
Datasheet |
GB | Box | Active | Through Hole, Right Angle, Vertical | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Red | 1.95 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|
GB15JVDSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
126 |
|
Datasheet |
GB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Amber | 2 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|
UB15SKG035FSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,667 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB15SKG035CSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,891 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
G3B25AB-XCSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
630 |
|
Datasheet |
G3B | Tray | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

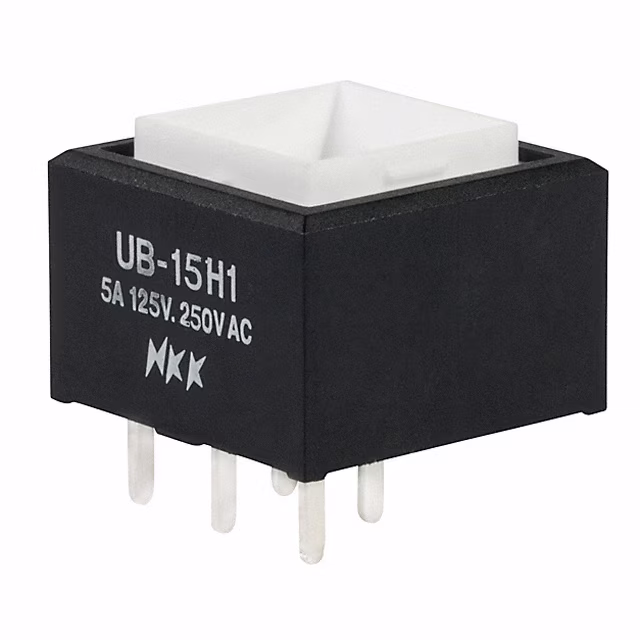

UB15SKW035CSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,454 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB15KKG015CSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,350 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MBNR15JW01-A-1ASNAP-ACTION SNAP-IN MOUNT PUSHBU NKK Switches |
157 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Square, Button (Not Included) | - | Black | - | - | Solder Lug | - | - | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
