Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN15SS2W13-BCBRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
108 |
|
Datasheet |
M | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

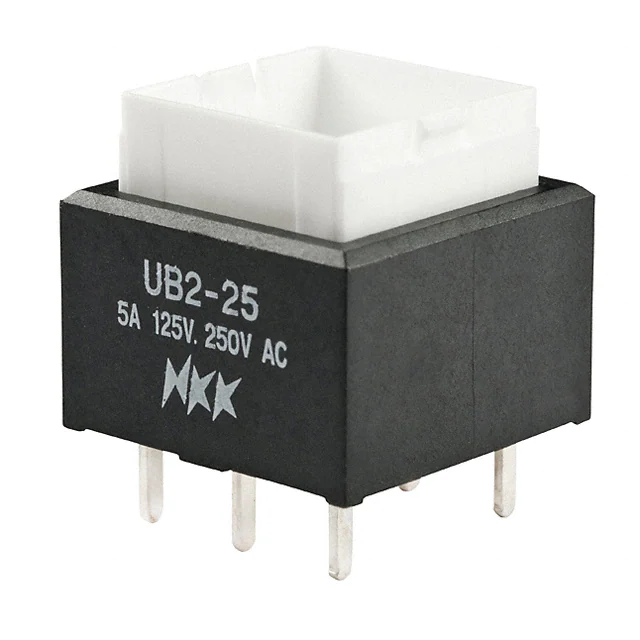

UB225SKW03NSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,425 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
UB16SKG035FSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
105 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
YB15CKG01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,817 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

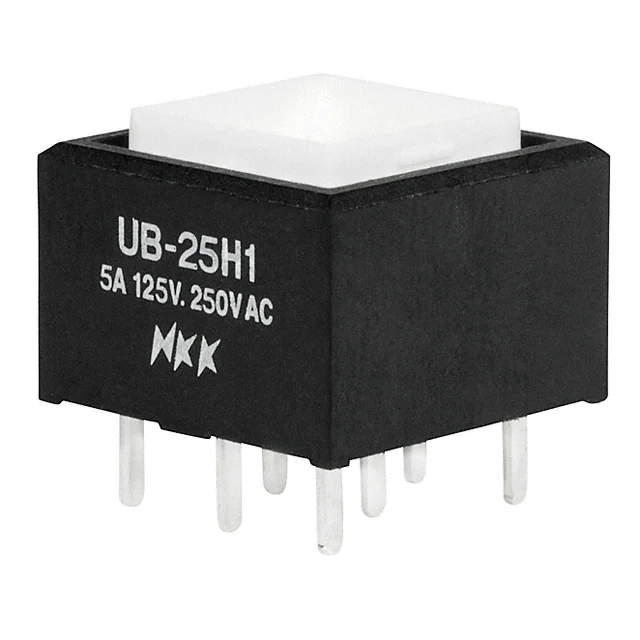

UB25SKW035CSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,260 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

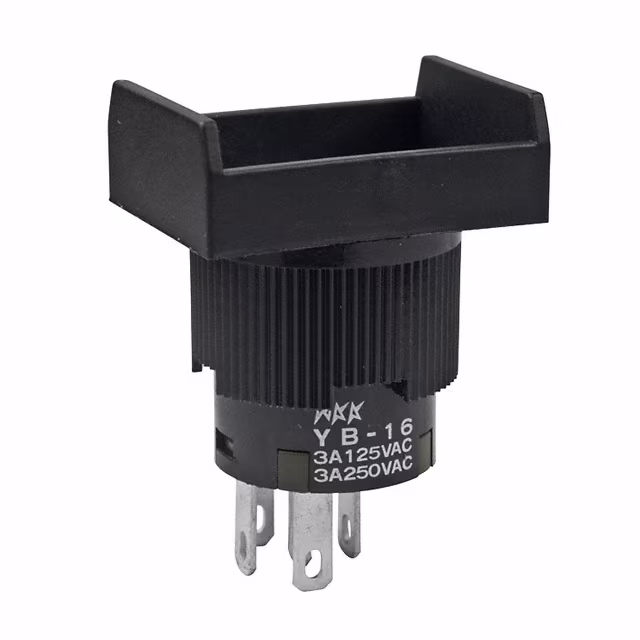

YB16RKW01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
129 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
UB25SKG035CSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
682 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
UB25SKG035DSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
237 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
UB26SKW035DSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
163 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
UB26SKW035FSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
126 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
