Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15RKG03-5C12-JCSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,000 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | PC Pin | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB225KKG016F-1JBSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
1,687 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
LB15WKG01-5C12-JCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,078 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
UB226SKW036DG-4JDG11SWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,110 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Amber/Blue | 2.8, 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

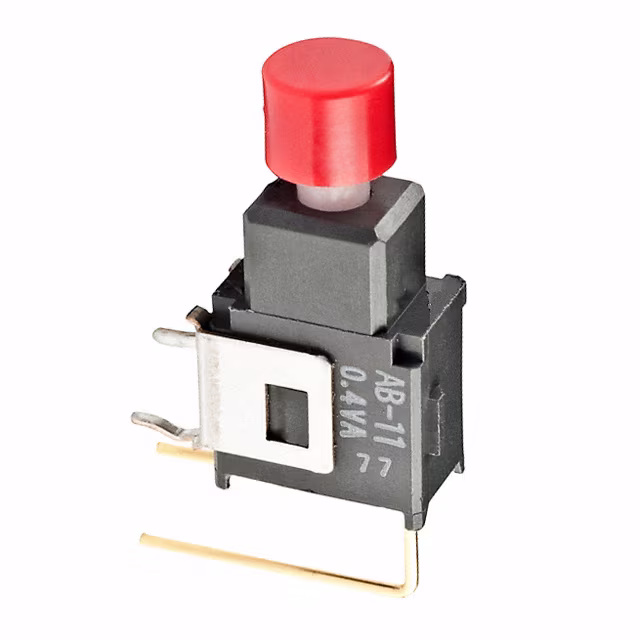

AB11BV-FCSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,670 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

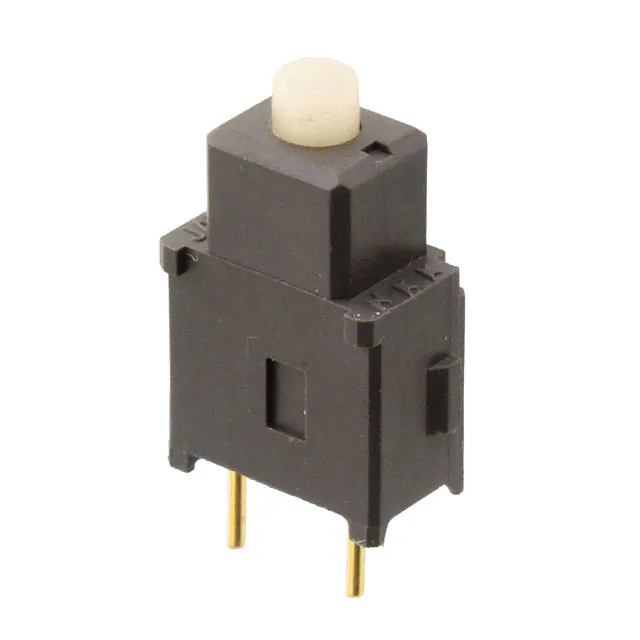

AB11CPSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
109 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB15AH-HASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
110 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
SB4011NOHC-2ASWITCH PUSH SPST-NO 3A 125V NKK Switches |
3,183 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
AB11BP-FASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
186 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11BP-HCSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,860 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
