Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

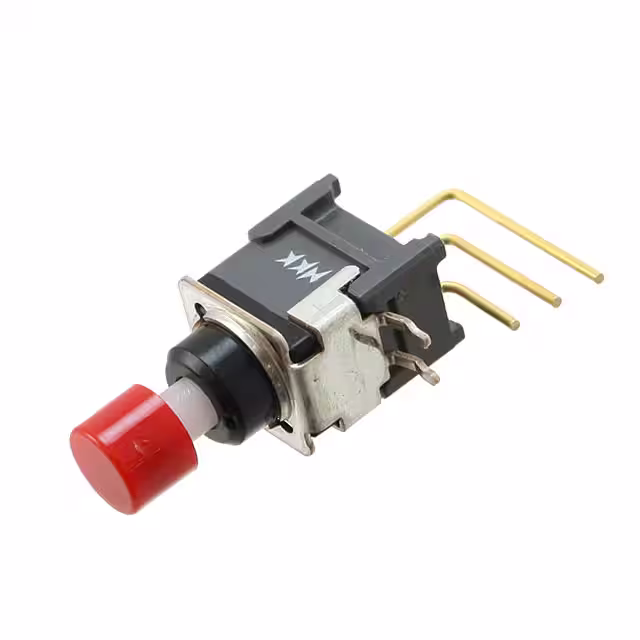

BB15AV-FCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,628 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
EB2065-CFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,948 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
BB16AB-HASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,586 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
AB25AB-FASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,550 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
BB25APSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,089 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
AB15AH-FCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,990 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11AV1-FASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,297 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
EB2061P-BBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,165 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
M2B15BA5G13-BBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,661 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
EB2011-BCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,412 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
