Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EB2011-BFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,577 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
LB25SKW01-5C-JCSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,201 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB25SGW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,167 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
HB15CKW01-FSWITCH PUSH SPDT 0.1A 30V NKK Switches |
4,183 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
UB15NKW015FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,575 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
KP0415ASG03RGBP-2SJBMINIATURE AUDIO/VIDEO PUSHBUTTON NKK Switches |
3,349 |
|
Datasheet |
KP04 | Box | Active | Surface Mount | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.1, 2.65, 2.9 VDC | SMD (SMT) Tab | - | - | - | -25°C ~ 50°C |
|

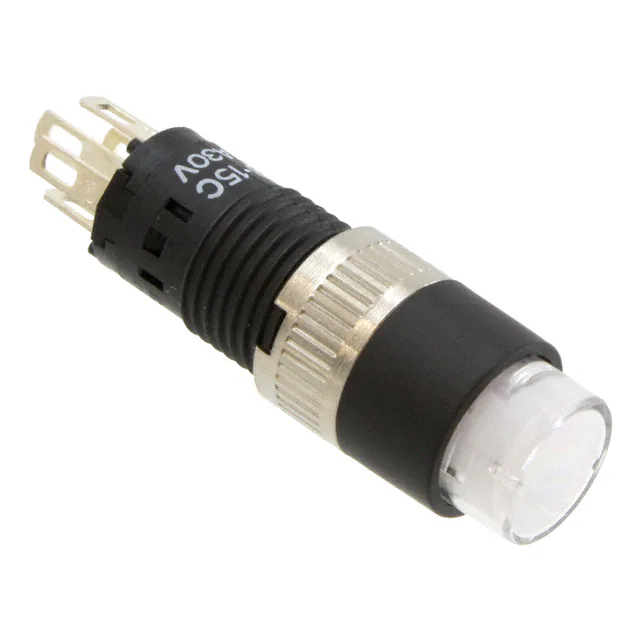

HB15CKW01-5C-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
3,876 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
UB25KKW015D-DDSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,610 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
HB16CKW01-5D-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
1,790 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2.05 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|

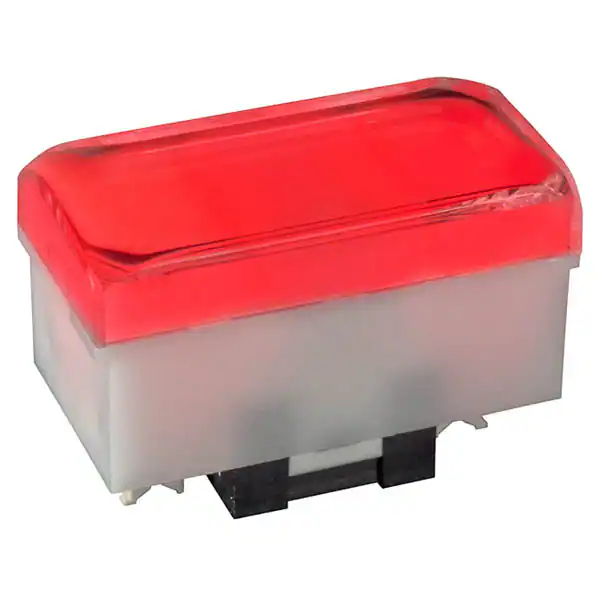

KP0115ACBKG03CJBSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
2,163 |
|
Datasheet |
KP | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 2 VDC | PC Pin | - | Tactile Feedback | - | -25°C ~ 50°C |
