Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB25WKW01-BJSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,585 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
HB15CKW01-6B-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
3,816 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
HB16CKW01-6G-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
1,354 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
LB26SKW01-6B-JBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,499 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
YB16WSKW01-5C-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,112 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
YB225CWSKW01SWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,948 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
|
LB15CKW01-5F24-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,601 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

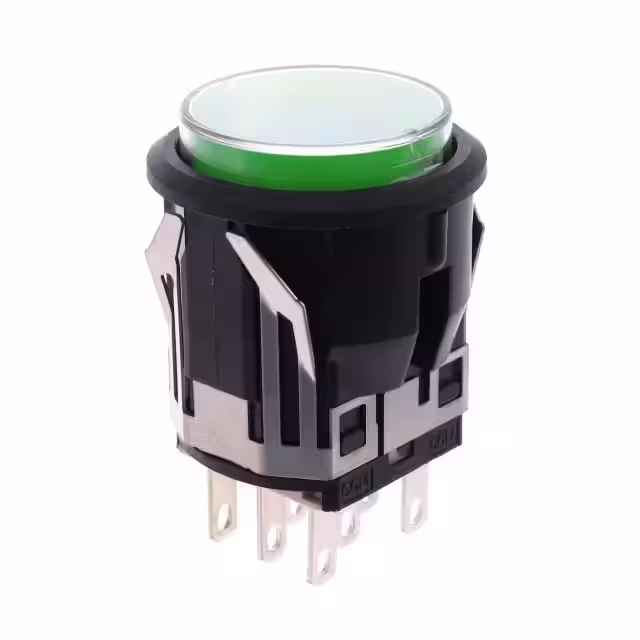

LB25CKW01-5F24-JFSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,961 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
GB215A2H-AASWITCH PUSH 2XSPST-NO 0.4VA 28V NKK Switches |
1,368 |
|
Datasheet |
GB2 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
|
GB215A2H-ACSWITCH PUSH 2XSPST-NO 0.4VA 28V NKK Switches |
1,455 |
|
Datasheet |
GB2 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black, Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
