Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GB15AV-XGSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,932 |
|
Datasheet |
GB | Box | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MB2011SD3W01-BCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
2,561 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
M2B15AA5W40/UCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,955 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
SB221NC/CSWITCH PUSH SPST-NC 3A 125V NKK Switches |
2,742 |
|
Datasheet |
SB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
EB2011/BSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,405 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
FB15ANP2SUBMINIATURE PUSHBUTTON/BUSHING NKK Switches |
4,451 |
|
Datasheet |
FB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Plunger for Cap | No Marking | White | - | - | Solder Turret | - | - | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
|
EB2011PGSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,601 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
AB25AH/328SWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,109 |
|
Datasheet |
AB | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Low Temperature Lubricant | - | -30°C ~ 85°C |
|

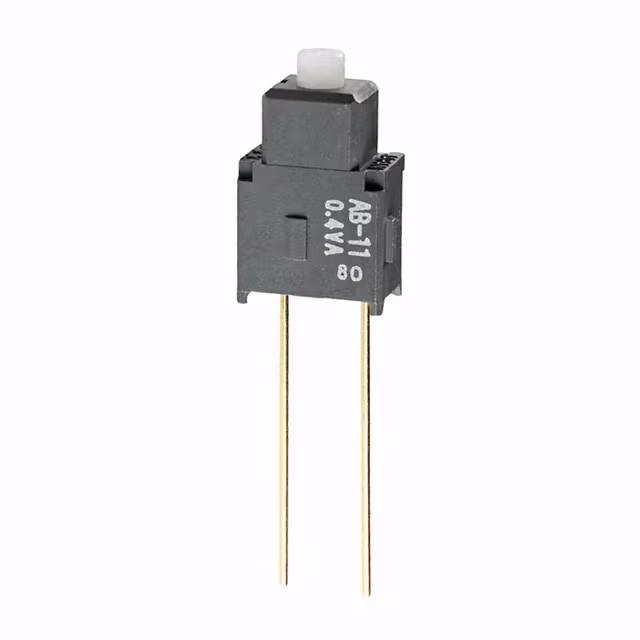

AB11CWSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
4,161 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
MB2011SB1W01-DCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
3,342 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
