Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

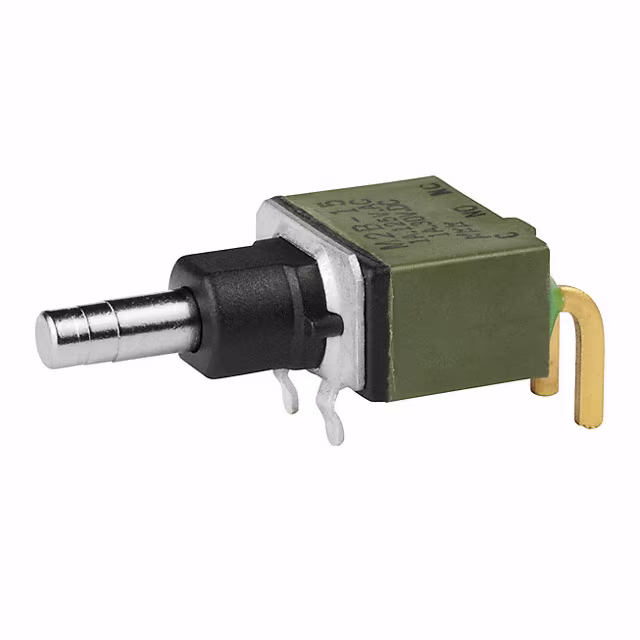

M2B15AA5A30SWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,191 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
EB2065-BHSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,939 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Gray | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
AB11CBSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
4,622 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
EB2065-CESWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,819 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
AB15CHSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,670 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
AB11BH-FBSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,267 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
M2B15AA5G30/USWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
3,522 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B25BA5W13/UCSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
4,810 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
AB15CWSUBMINIATURE PUSHBUTTON/PC NKK Switches |
1,032 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
KB26KKW01B-EBSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
1,799 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 70°C |
