Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB221NC/USWITCH PUSH SPST-NC 3A 125V NKK Switches |
3,276 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

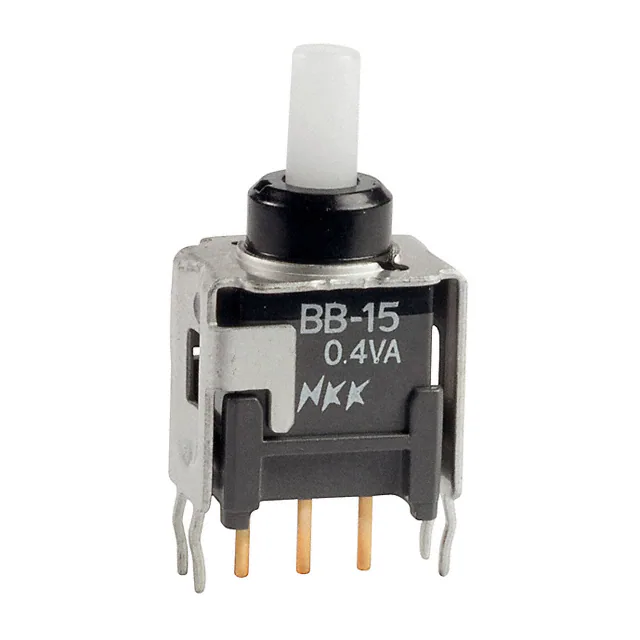

BB15AB/328SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,122 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic, Low Temperature Lubricant | - | -30°C ~ 85°C |
|
|
G3B15AH-R-YBULTRA-MINIATURE PROCESS SEALED S NKK Switches |
3,434 |
|
Datasheet |
G3B | Bulk | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | Gull Wing | - | - | - | -30°C ~ 85°C |
|
|
EB2061-A-J41ASWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,954 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
G3B25AH/328SWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
1,568 |
|
Datasheet |
G3B | Bulk | Obsolete | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Gull Wing | - | Low Temperature Lubricant | - | -30°C ~ 85°C |
|
MB2065SS1W01/UCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
2,442 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
AB15CVSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,764 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
MB2411E1W03-FASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,829 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
M2B25BA5G13/328SWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
3,026 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Low Temperature Lubricant | - | -30°C ~ 85°C |
|
|
SCB15S10A-3CSWITCH PUSHBUTTON SPDT 10A 125V NKK Switches |
4,348 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
