Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN15LD3G01BUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,160 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
SCB15S15A-5CASWITCH PUSH SPDT 15A 125V NKK Switches |
2,996 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Rectangular, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB15S15A-5FASWITCH PUSHBUTTON SPDT 15A 125V NKK Switches |
4,500 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | - | - | Quick Connect - 0.187" (4.7mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|

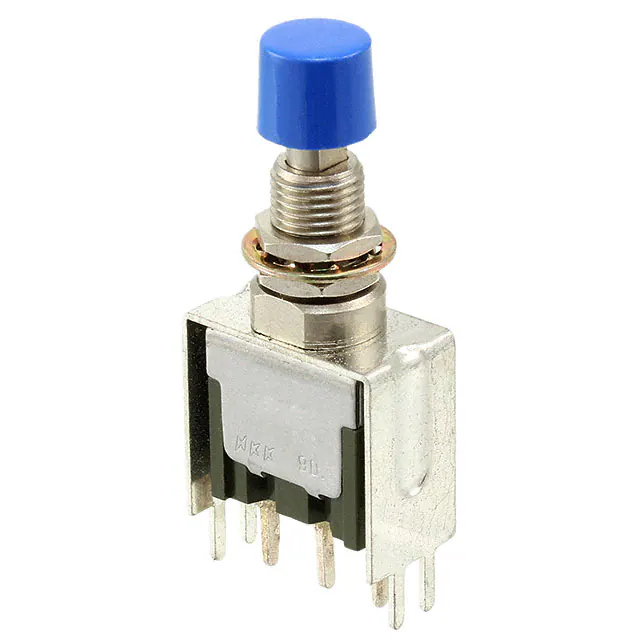

MB2011SS1W13-BGSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
3,332 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB215KKG01N-4JESWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,653 |
|
Datasheet |
UB2 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Yellow Filter/Diffuser) | - | - | Solder Lug | - | Epoxy Sealed Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
SCB15S15B-4FASWITCH PUSH SPDT 15A 125V NKK Switches |
3,791 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Green | - | - | Quick Connect - 0.250" (6.3mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB15S15B-4HASWITCH PUSHBUTTON SPDT 15A 125V NKK Switches |
1,994 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Gray | - | - | Quick Connect - 0.250" (6.3mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB15S15B-5FASWITCH PUSHBUTTON SPDT 15A 125V NKK Switches |
1,597 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | - | - | Quick Connect - 0.250" (6.3mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
EB2011-BA/AT512MLIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
1,418 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -10°C ~ 70°C |
|
MB2011SS1W30-CASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,925 |
|
- |
MB2000 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
