Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

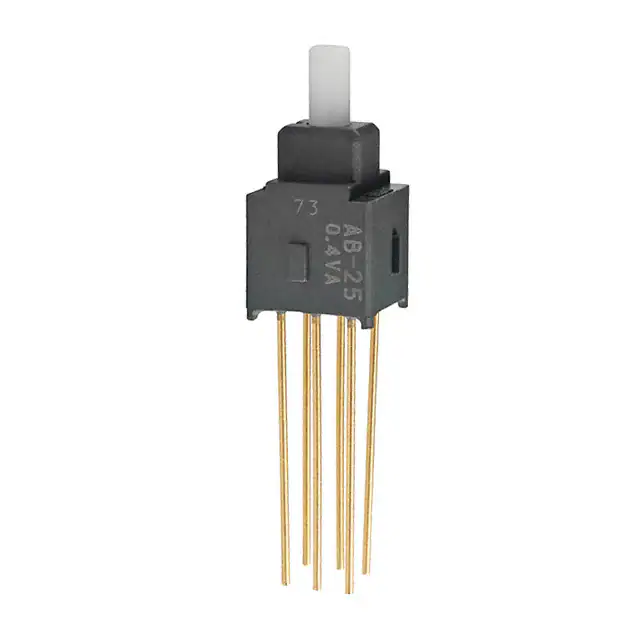

AB25AWSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,767 |
|
Datasheet |
AB | Tube | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
MB2011SB1G01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,424 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
EB2061P-CGSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,553 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Blue | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2061P-CASWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,262 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2061P-CBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,655 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
SCB25S10ASWITCH PUSHBUTTON DPDT 10A 125V NKK Switches |
2,917 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 10A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
EB2061P-CFLIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
1,037 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Green | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2061P/U-CFLIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
1,166 |
|
Datasheet |
EB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
MB2011SB1W01-BASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,159 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
UB16SKW03F-FFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,707 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
