Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB16KKW01SWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,041 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
MB2411E1A01-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,726 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2061LS1W01/328SWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
4,685 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Low Temperature Lubricant | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
KB16CKG01SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,109 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
MBNR15A2W30SNAP-ACTION BRACKET PC MOUNT PUS NKK Switches |
2,572 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
SCB25P10B-1ASWITCH PUSHBUTTON DPDT 10A 125V NKK Switches |
3,862 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
AB25AW-HASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,355 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Wire Wrap | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
AB25AP-HCSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,711 |
|
Datasheet |
AB | Box | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

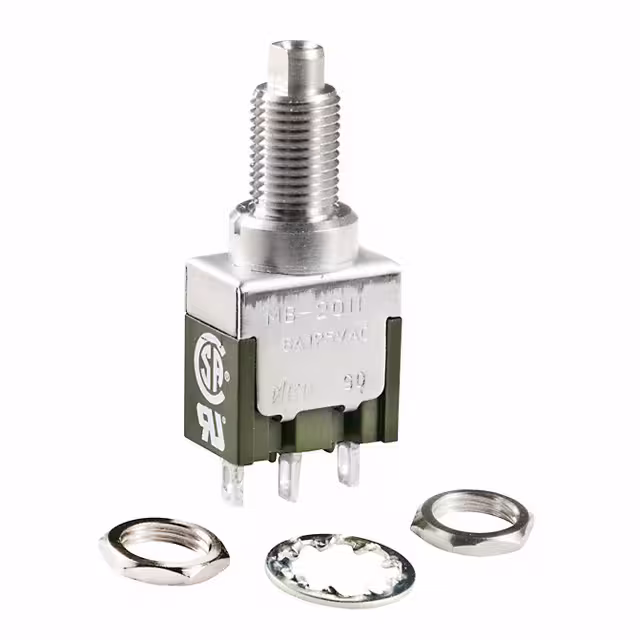

MB2011SS1W01/UC-BASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,400 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
SB4011NOMG-2ASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
4,421 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
