Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB15SKW01-05-BBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,704 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | Incandescent, White | 5 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-12-BBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,959 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | Incandescent, White | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

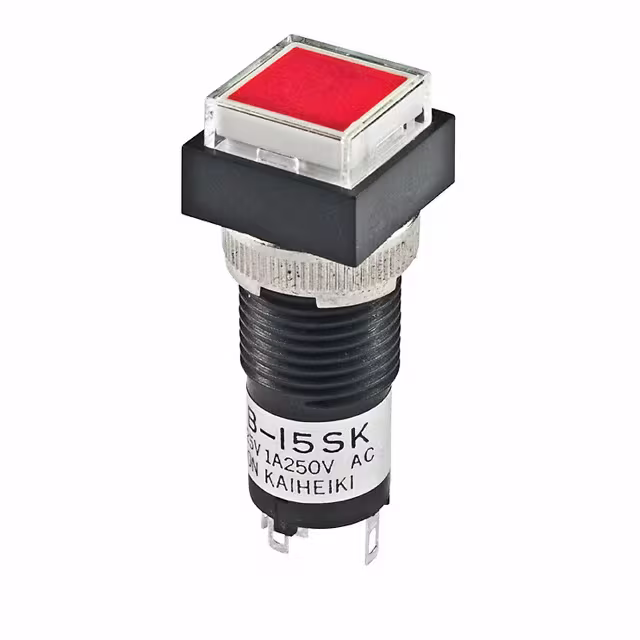

KB15SKW01-5C12-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,685 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-5C-ABSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,548 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.9 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-6F-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,687 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-6G-JBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,789 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15SKW01BSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,884 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
KB15SKW01B-5C-ABSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,053 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.9 VDC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01B-5C-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,615 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01B-5F24-ABSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
1,918 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Green | 24 VDC | Solder Lug | - | With Barrier | Circular - 12.30mm Dia | -25°C ~ 50°C |
