Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB16CKG01-28-JFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,243 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 28 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKG01-5C05-JCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,720 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKG01-5D05-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,868 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKG01-5D12-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,183 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKG01-5F12-JFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,313 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKG01-5F24-JFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,014 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKG01-6B-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,131 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16CKG01-BBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,615 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB16CKG01-FFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,683 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

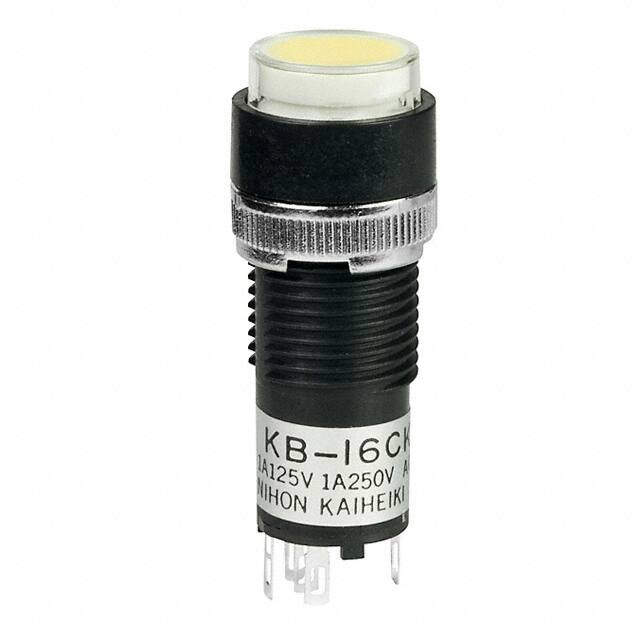

KB16CKW01-01-JESWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
4,570 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | Neon, Yellow | 110 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
