Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2085SS1W03-CCSWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
4,161 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

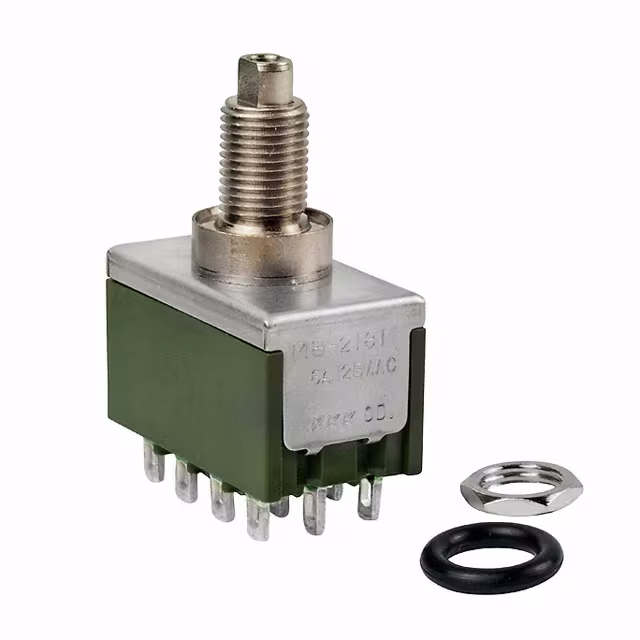

MB2181SD3W01SWITCH PUSHBUTTON 4PDT 6A 125V NKK Switches |
3,103 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2181SS2G03/328-CASWITCH PUSH 4PDT 0.4VA 28V NKK Switches |
2,033 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole | Standard | 4PDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Low Temperature Lubricant | - | -30°C ~ 85°C |
|
MB2185SD3W01SWITCH PUSHBUTTON 4PDT 6A 125V NKK Switches |
3,855 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

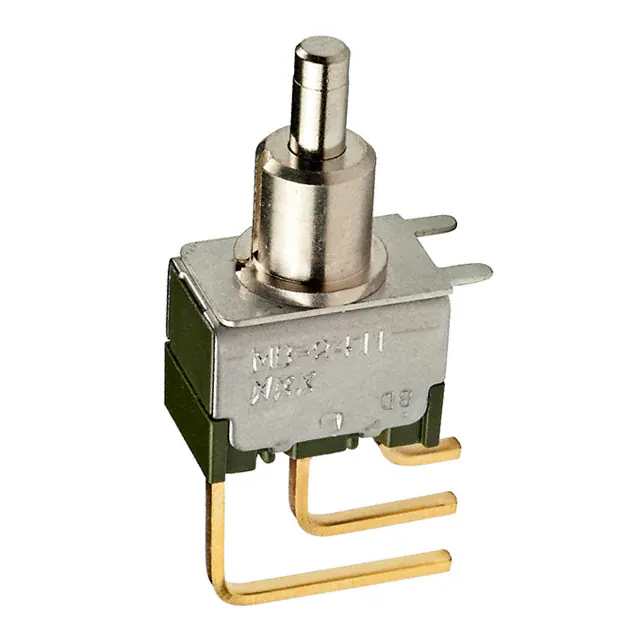

MB2411A2A40SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,178 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

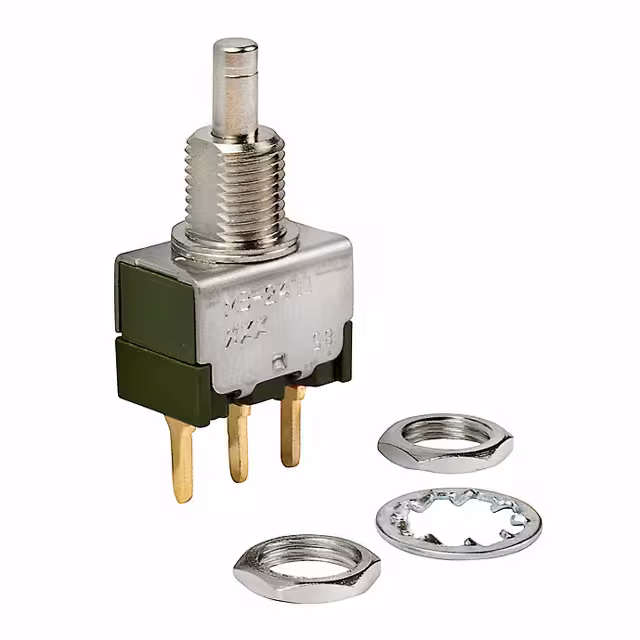

MB2411E1A03SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,327 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

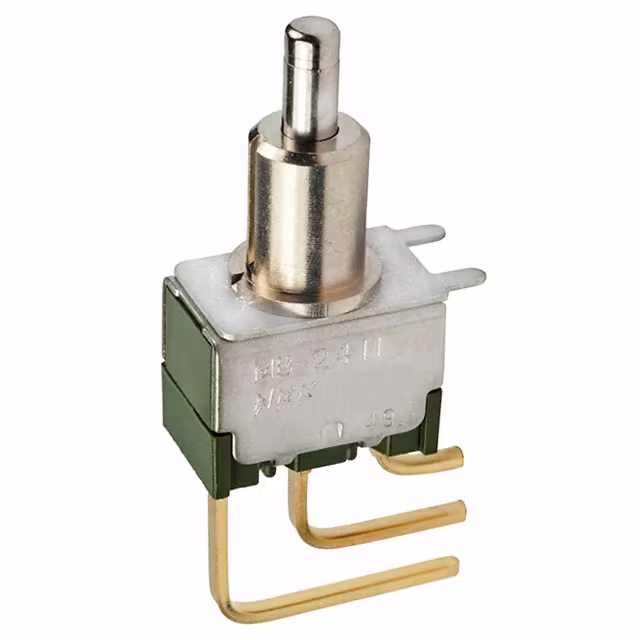

MB2411S2G40SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,101 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2461E1A01-HCSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,522 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2461JW01-A-4A-CFSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,310 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Green/Red | 1.9, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 15.00mm | -30°C ~ 85°C |
|
|
SB25-BASWITCH PUSH DPDT 15A 125V NKK Switches |
3,982 |
|
Datasheet |
SB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 15A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
