Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15SKG01-05-GBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,021 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Blue (White Filter/Diffuser) | Incandescent, Blue | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15SKW01-28-BBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,750 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White (White Filter/Diffuser) | Incandescent, White | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15SKW01-28-CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,687 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15SKW01-28-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,187 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15WCKW01-28-CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,874 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15WCKW01-28-EBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,810 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB16CKW01-12-JCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,430 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB16RKG01-12-EBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,720 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB16SKW01-12-BBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,310 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White (White Filter/Diffuser) | Incandescent, White | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

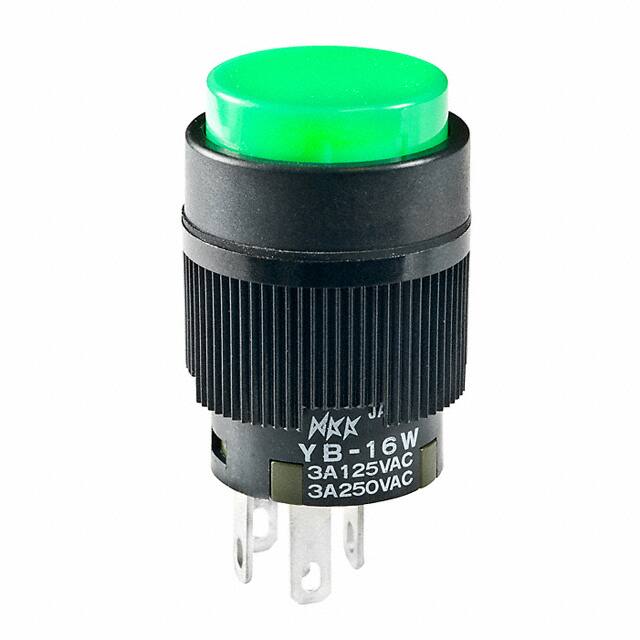

YB16WCKW01-12-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,392 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
