Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCB25S15C-3ASWITCH PUSH DPDT 15A 125V NKK Switches |
4,982 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Screw Terminal | - | - | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
SCB26S15A-4CASWITCH PUSH DPDT 15A 125V NKK Switches |
3,966 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 15A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|

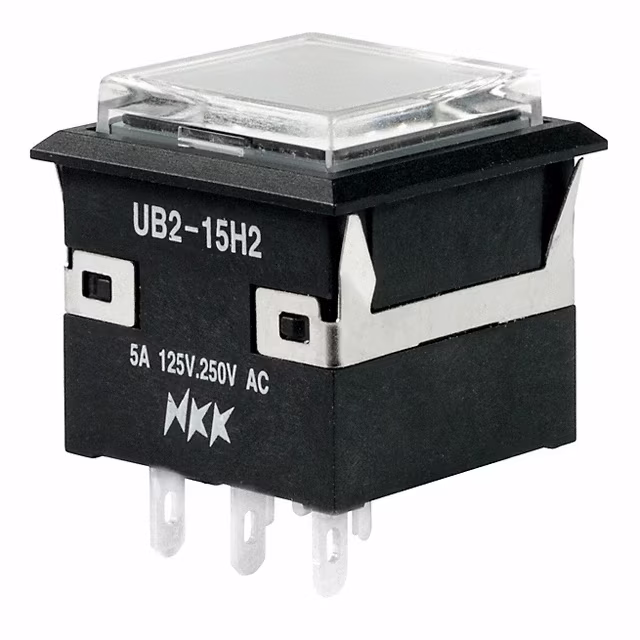

UB215KKW016CF-5J01SWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,883 |
|
Datasheet |
UB2 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | ON/OFF | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB215KKW016CF-5J04SWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,518 |
|
Datasheet |
UB2 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB216KKW016CF-5J02SWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,939 |
|
Datasheet |
UB2 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB25NKG016BSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,144 |
|
Datasheet |
UB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, White | 2.9 VDC | Solder Lug | - | Spot LED | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
UB26KKW01N/USWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,905 |
|
Datasheet |
UB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
YB15CKW01-12-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,092 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15MKW01-12-CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,745 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15NKG01-12-CBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,451 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red (White Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | Strain Relief | Circular - 16.00mm Dia | -25°C ~ 50°C |
