Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

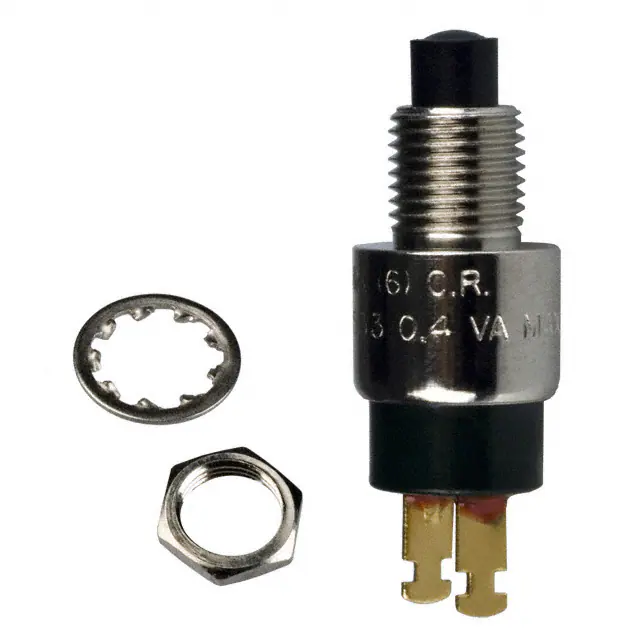

8533MZBE2SWITCH PUSH SPST-NC 0.4VA 20V C&K |
1,726 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
ELUMOASAQ1C12SWITCH PUSH SPDT 0.25A 50V C&K |
2,966 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, White | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
|
ELUMEESAQ1C12SWITCH PUSH SPDT 0.25A 50V C&K |
3,406 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, White | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
8125J81ZBE11Linear IC's C&K |
3,134 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | - | White | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
E112SYZQESWITCH PUSHBUTTON SPDT 4A 125V C&K |
3,944 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Process Sealed | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
8551SZGE2SWITCH PUSH SPST-NO 3A 120V C&K |
3,254 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
K12PLWH15NLV302SWITCH PUSH SPST-NO 0.1A 30V C&K |
1,371 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, White | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
8534T1ZQE2SWITCH PUSH SPST-NC 1A 120V C&K |
4,778 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
F4UOATBAUSWITCH PUSH 4PDT 0.04A 50V C&K |
2,280 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
|
SERL GY GN 7.62 AU OASWITCH PUSH SPDT 0.01A 24V C&K |
3,644 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
