Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8121J83CGE22SWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,168 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button, Flush | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
E121MD1AV3GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
2,434 |
|
Datasheet |
E020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8121SD9CGELinear IC's C&K |
4,244 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | - | -30°C ~ 75°C |
|

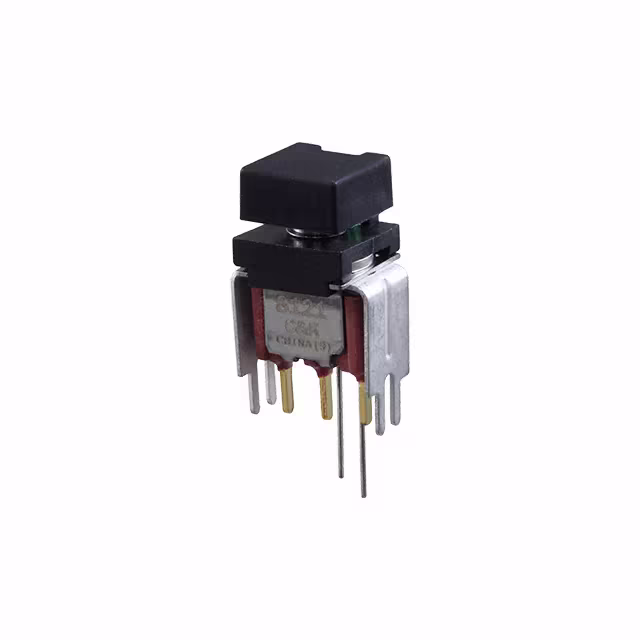

8121J95V3GE26SWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,544 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Green | 2.1 VDC | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

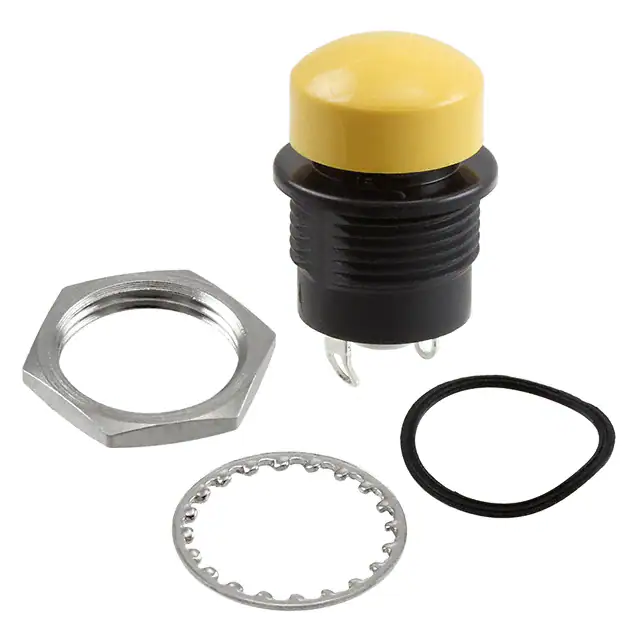

PNP8S5T2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V C&K |
1,416 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
F6UEEAUSWITCH PUSH 6PDT 0.04A 50V C&K |
4,095 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
|
8121SD3V2GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,082 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

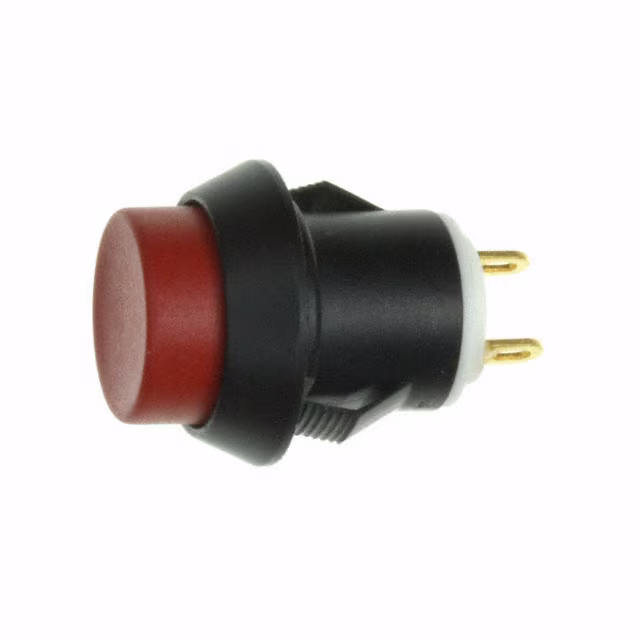

AP4C300SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
4,321 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
8121SD3V31GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,061 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
TP21SH9V3BELinear IC's C&K |
4,240 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole | Standard | DPST-NC | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
