Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8121J95V3RE33SWITCH PUSHBUTTON SPDT C&K |
2,355 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Red | LED, Red | 2.1 VDC | PC Pin | - | - | - | -30°C ~ 75°C |
|
E225SD1V3BESWITCH PUSH DPDT 0.4VA 20V C&K |
4,088 |
|
Datasheet |
E020 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8121SYV4GELinear IC's C&K |
3,970 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
8168LY3CQE2Linear IC's C&K |
4,382 |
|
Datasheet |
8020 | Bulk | Last Time Buy | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
8261J80ZGE2SWITCH PUSHBUTTON DPDT 6A 120V C&K |
3,201 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

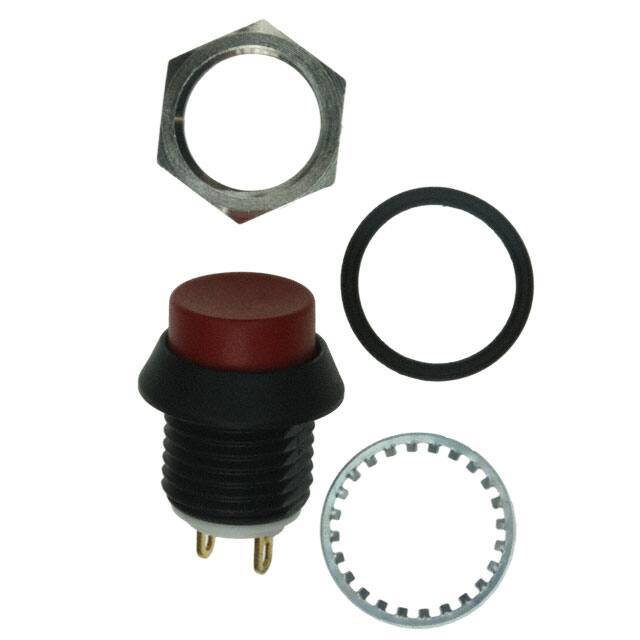

AP4C300TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,006 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
U811J83ZGE22Linear IC's C&K |
1,398 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button, Flush | - | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
8532J81ZQE22SWITCH PUSH SPST-NO 1A 120V C&K |
2,236 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
PNP3N0D2Y03QE3N, DOME BEZEL, SPST NO, SOLDER C&K |
1,249 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
|
8261SH9AV2QE1Linear IC's C&K |
1,302 |
|
Datasheet |
8020 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
