Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8261LHZGE2SWITCH PUSHBUTTON DPDT 6A 120V C&K |
2,811 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8121J95V3RE66SWITCH PUSHBUTTON SPDT C&K |
3,209 |
|
Datasheet |
8020 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -30°C ~ 75°C |
|
8121J81ZGI22SWITCH PUSHBUTTON SPDT 1A 120V C&K |
1,909 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
PNP8S2T2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V C&K |
3,989 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
PNP8S3D2Y03GELinear IC's C&K |
3,920 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button, Domed | - | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
8221MD9AGESWITCH PUSHBUTTON DPDT 1A 120V C&K |
4,465 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8125J95V3BE33SWITCH PUSH SPDT 0.4VA 20V C&K |
3,120 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Red | LED, Red | 2.1 VDC | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8121SHZGISWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,964 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
8168J86ZQE223SWITCH PUSHBUTTON SPDT 6A 120V C&K |
3,474 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

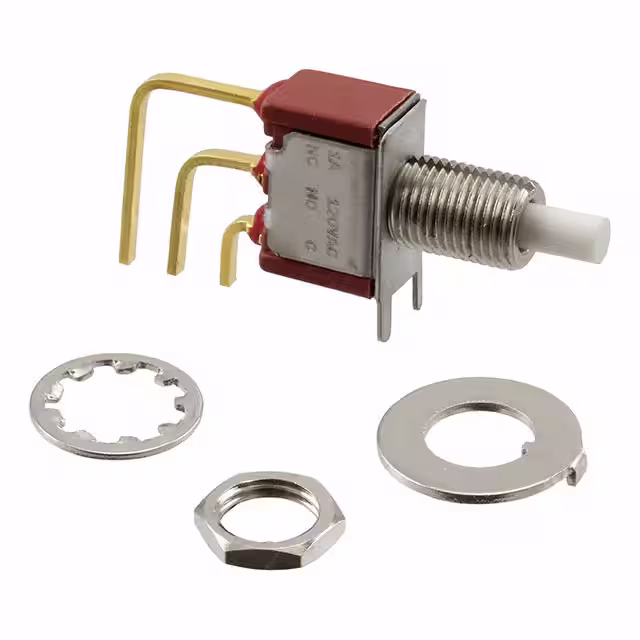

8121SYAV2GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,146 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
